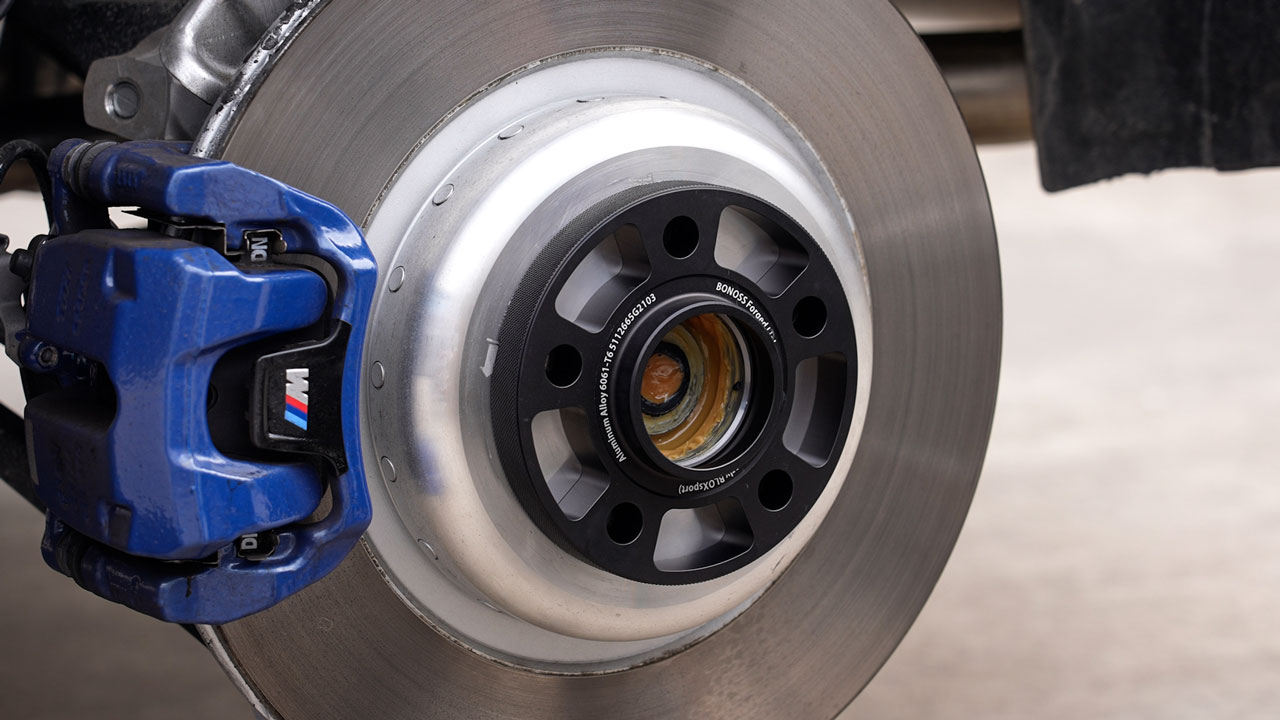

Installing wheel spacers for rims is becoming more and more popular among many BMW G06 X6 enthusiasts. When done properly they provide a distinct look that brings the appearance of your X6 to a whole new level. Simply speaking, they are components that attach to your car’s brake rotor, and the wheel is installed on the spacers, so the tires sit farther out from your vehicle hub. By creating this additional space, they help improve the stability, greatly enhance the corner performance, prevent your wheels and tires from rubbing against wheel well liners, shock absorbers, brakes, or other suspension components. If you are a spacers starter, this installation example and the before and after look may help you solve any doubts.

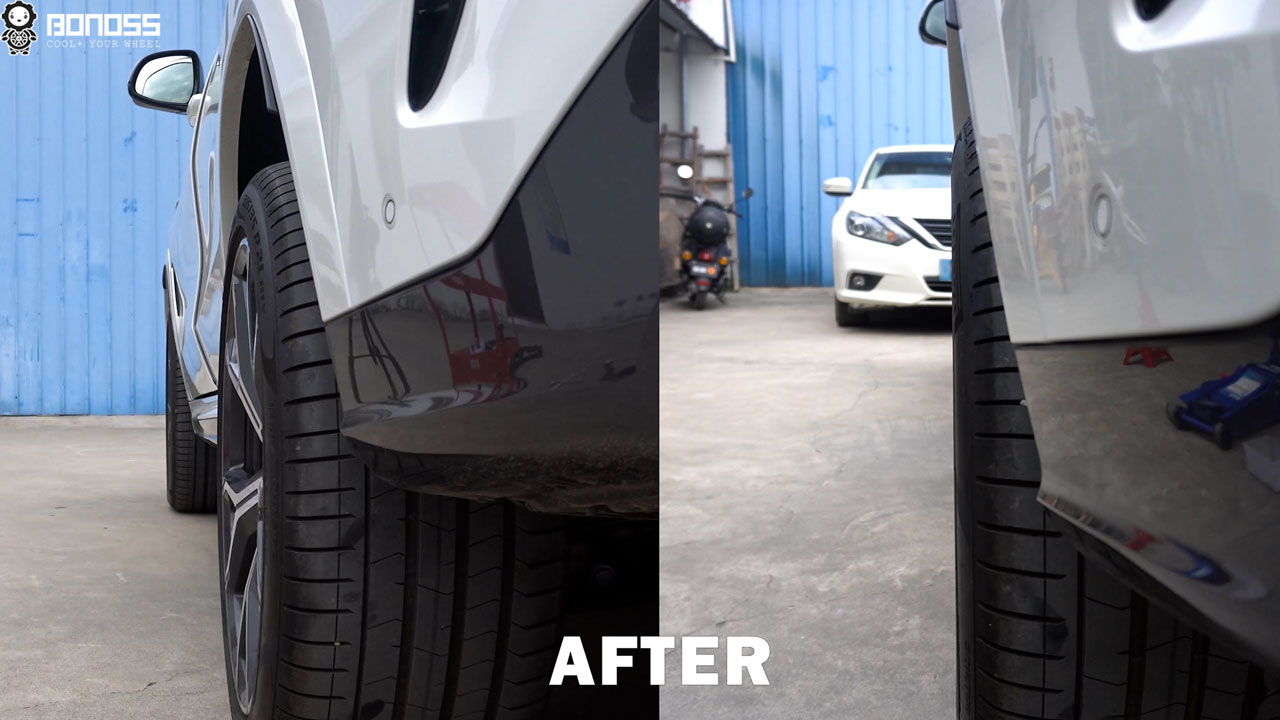

BMW Wheel Spacers Before and After:

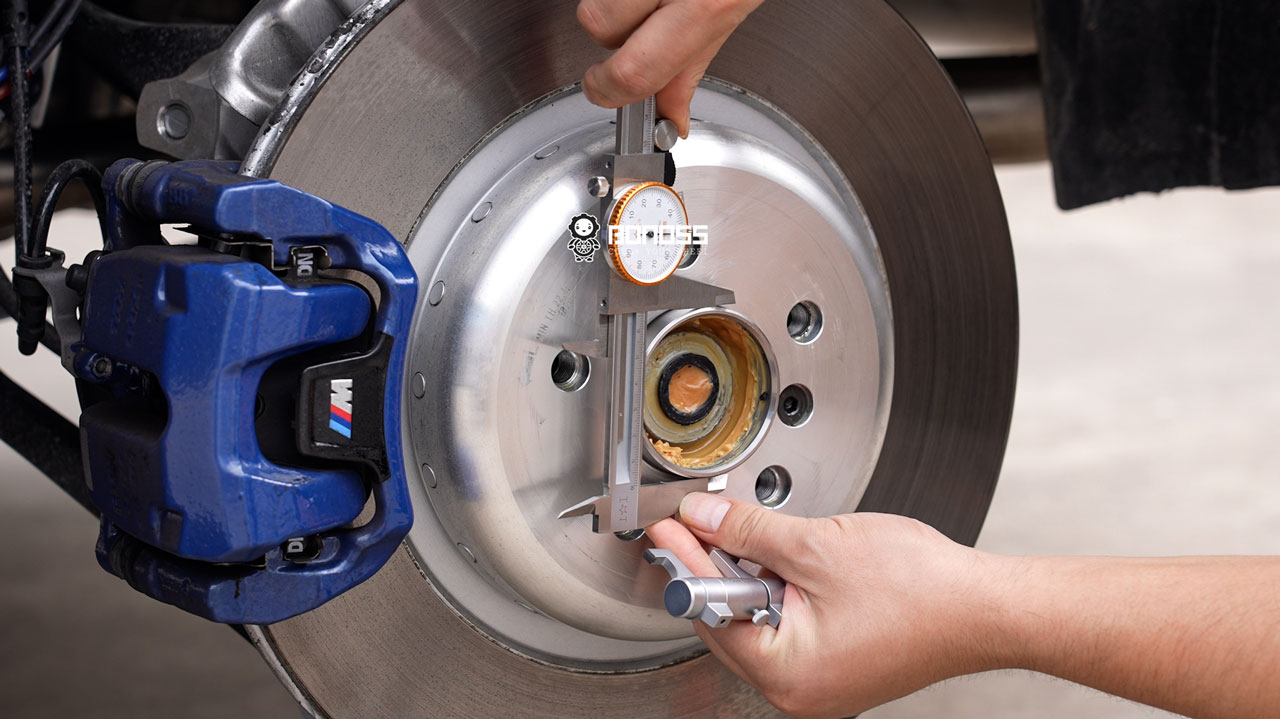

Before shopping for your BMW X6 wheel spacers, there are some figures that you will need. For example, the bolt pattern (PCD) and center bore (CB) of your vehicle hub. The PCD refers to the diameter of an imaginary circle formed by the centers of the wheel lugs. If you ever need to buy new wheel spacers for your vehicle, you should know the bolt patterns. In a 5-lug wheel, measure from the back of a hole to the center of the second hole. The center bore refers to the diameter of the hole in the center of the vehicle hub and wheel. The data of this 2021 BMW G06 X6 is that: PCD: 5×112 CB: 66.5mm. If you need extended wheel bolts, then knowing the thread pitch is also important.
Most OEM wheels look obviously “retracted” in the wheel arches. With various thickness BMW wheel spacers, you are able to control how far out your wheels can be. After installing wheel spacers for rims, you can add larger wheels and tires without rubbing issues. You can gain the ideal amount of clearance for a bigger brake instead of rubbing against it when mounting back the wheel. You will get a more aggressive and personalized look due to the pushing outside of the wheels. In addition, conversion wheel spacers can change the bolt pattern and center bore to allow you to mount various wheels. If you intend to convert PCD/CB for fitting the wheels, then BMW conversion spacers will be your instant and effective solution.
Why Do You Need BMW Extended Wheel Bolts?

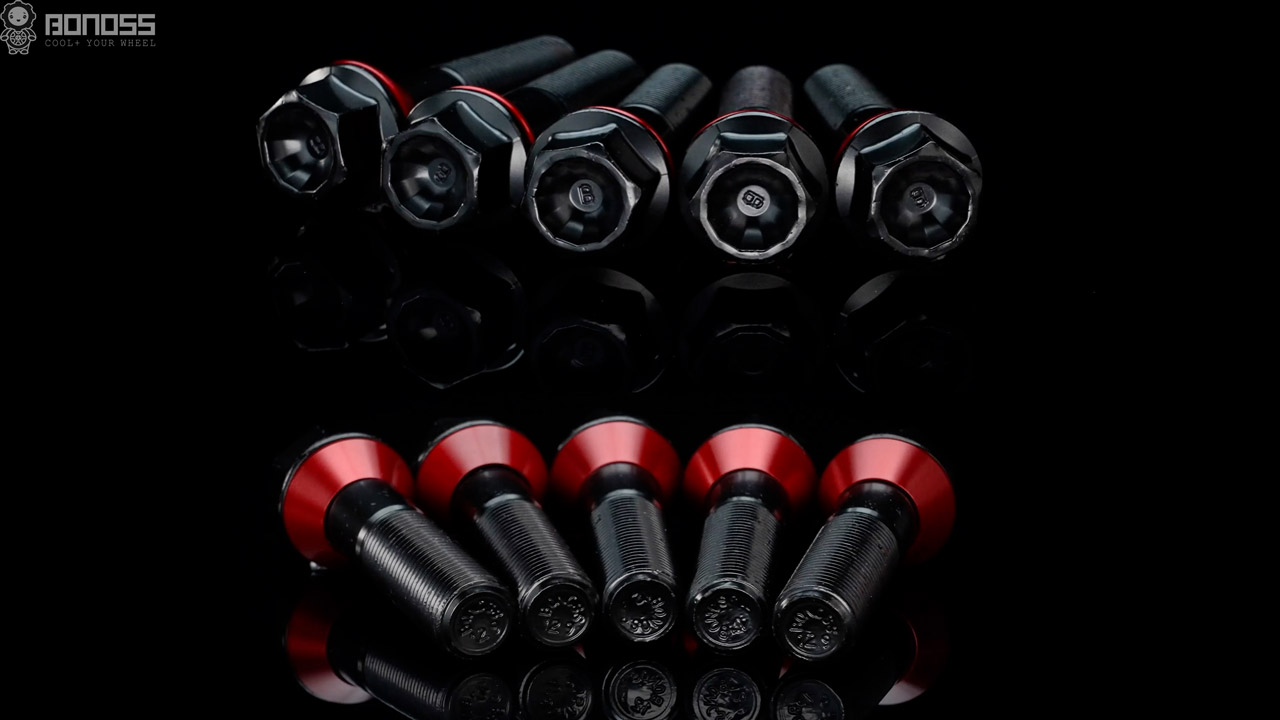

Wheel bolts are standard on almost all BMW-made cars. The bolt goes from the wheel through the brake rotor cap and is directly threaded into the vehicle hub, locking everything in place. Any time you run BMW G06 wheel spacers, you need longer wheel bolts. If you have added wheel spacers, to meet proper thread engagement, the thread length of the extended wheel bolts should equal the length of stock bolts plus the thickness of the spacer. Giving an example, if your stock bolt’s length is 27mm, and you have installed 20mm spacers, then 47mm wheel bolts will be required. The thread pitch of the 2021 BMW G06 is M14x1.25.
Where to Buy BMW G06 X6 Wheel Spacers Near Me?
- BONOSS has 3mm-20mm BMW G06 wheel spacers 5×112 in stock. We also offer non-normal thickness’s customized service, completed only in 1-3 days, 3mm-160mm thick is available, OEM/ODM is available. Common requests from our customers include PCD conversion, CB conversion adapters for aftermarket wheels (e.g., 5×112 to 5×114.3 wheel adapters, 5 lug to 6 lug adapters, 5×112 to 5×120 wheel adapters).
- BONOSS BMW extended wheel bolts have fully SGS, TÜV ISO Grade 12.9 certified, tensile strength≥1,282Mpa, limited life range test≥2,000,000 stress cycles without damage, ultimate tensile load≥152,000N, hardness (HV)≥395, NSS≥192H. 27mm – 75mm wheel bolts are available to fit your wheel spacers mod.
- BONOSS BMW Hubcentric Wheel Spacers are 10 Years Worry-free Warranty, which is an excellent and cost-effective choice for wheel upgrades. Professional production experience and excellent product quality make us confident to provide a Super Long Warranty Service up to 10 years that far exceeds the period of most brands.
