BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (4)
BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (10)

The Volvo XC90 wheel spacers are very useful auto parts for your wheel improvement. If you plan to change the size, style, or color of the wheels, distortions in the offset or other suspension clearance issues will make a wheel modification not ideal. Using Volvo 5×108 spacers will solve these issues by creating the desired space between the vehicle hub and wheels. If you need to push out the tires 15mm, then 15mm spacers will do the trick for you. Before buying Volvo XC90 spacers, you need to know how to choose the right spacers. There are two distinct types of wheel spacers found on today’s market: slip-on wheel spacers and bolt-on wheel spacers. There are many differences between these XC90 wheel spacers.

If you would like to run over 15mm XC90 wheel spacers, we’d recommend bolt-on spacers. Bolt-on spacers are bolted to the hub assembly with the provided wheel bolts and then using your stock wheel bolts to secure the wheel on the new lug nuts pressed into the spacer. This ensures you can fully engage the wheel bolts. You don’t have to change to longer wheel bolts. In addition, because the bolt-on spacers double the number of wheel bolts per wheel, it is critical to ensure that all the wheel bolts are properly torqued down. After installing 25mm Volvo spacers, it is a good idea to give the spacers another check after 100 miles of driving to make sure they’re still in place well.

BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (9)

Why Do You Need Hubcentric Volvo XC90 Wheel Spacers?

If you would like to install wheel spacers for Volvo XC90 SPA, hubcentric ones are better and safer. Basically, hubcentric wheel spacers mean their center bores are designed to fit perfectly on the axle hubs and the wheels. In this way, the wheels are centered by the hub connection and the lugs can hold it flush against the mounting plate. This allows the wheel to support the vehicle’s weight and fill the remaining space for a tight fit, reducing the chance of vibration. However, with lug-centric wheel spacers, the wheel is attached and centered by the wheel bolts. Lugs can be bent under force and provoke vibration in the car. Avoid using these ones.

BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (8)

What Kind of Volvo XC90 Extended Wheel Bolts Do You Need?

Most European-made cars use wheel bolts to secure the wheels. Equipping your vehicle with the correct lug bolts is very important to ensure the safe and reliable mounting of the wheels, especially when you have added slip-on wheel spacers. If you using Volvo XC90 spacers for wheels, it is critical to ensure your wheel bolts are long enough for the proper thread engagement. Giving an example, if your stock bolt’s length is 27mm, and you have installed 15mm spacers, then 42mm wheel bolts will be required. Most Volvo cars’ OEM wheel bolts are conical seat types. Depending on the seat type of the wheel mounting hole surface, there are conical seats, ball seats, and flat seats, etc. Equipping your 2021 Volvo XC90 with the correct lug bolts is very important to ensure the safe and reliable mounting of the wheels.

BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (5)
BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims (3)

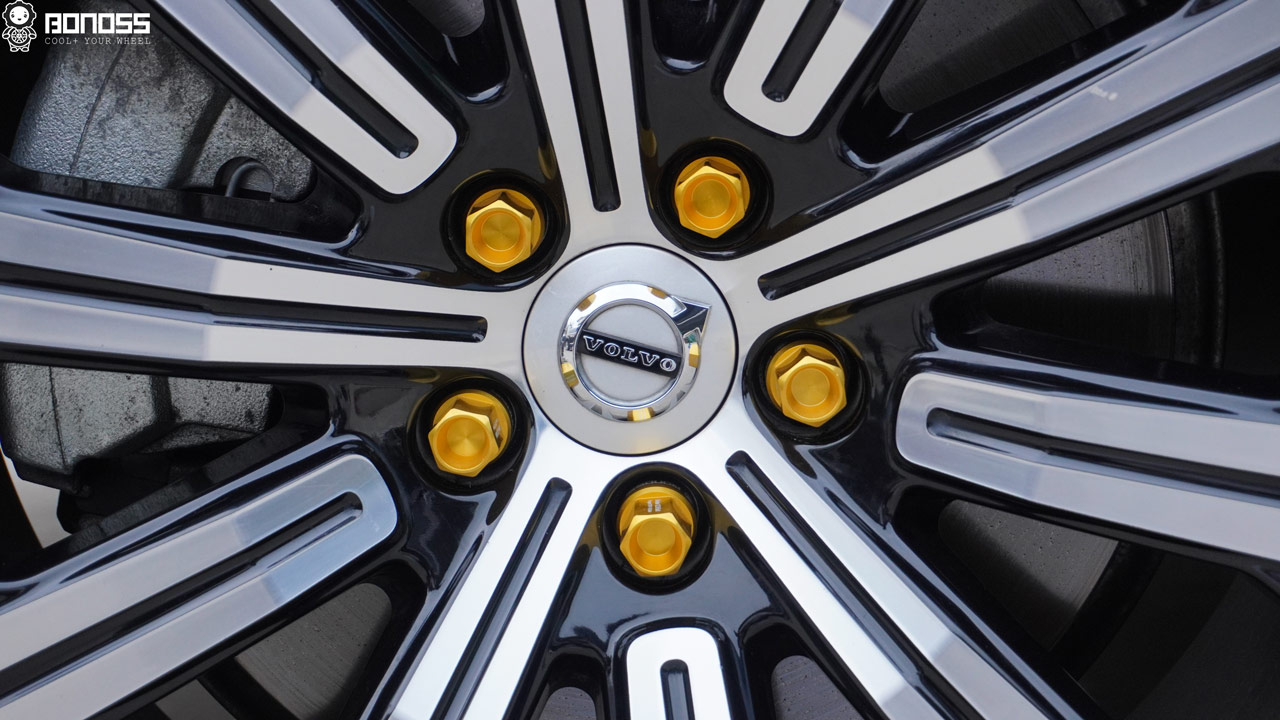

BONOSS Forged Lightweight Plus Volvo Wheel Spacers XC90 5x108 Spacers for Rims Extended Wheel Bolts

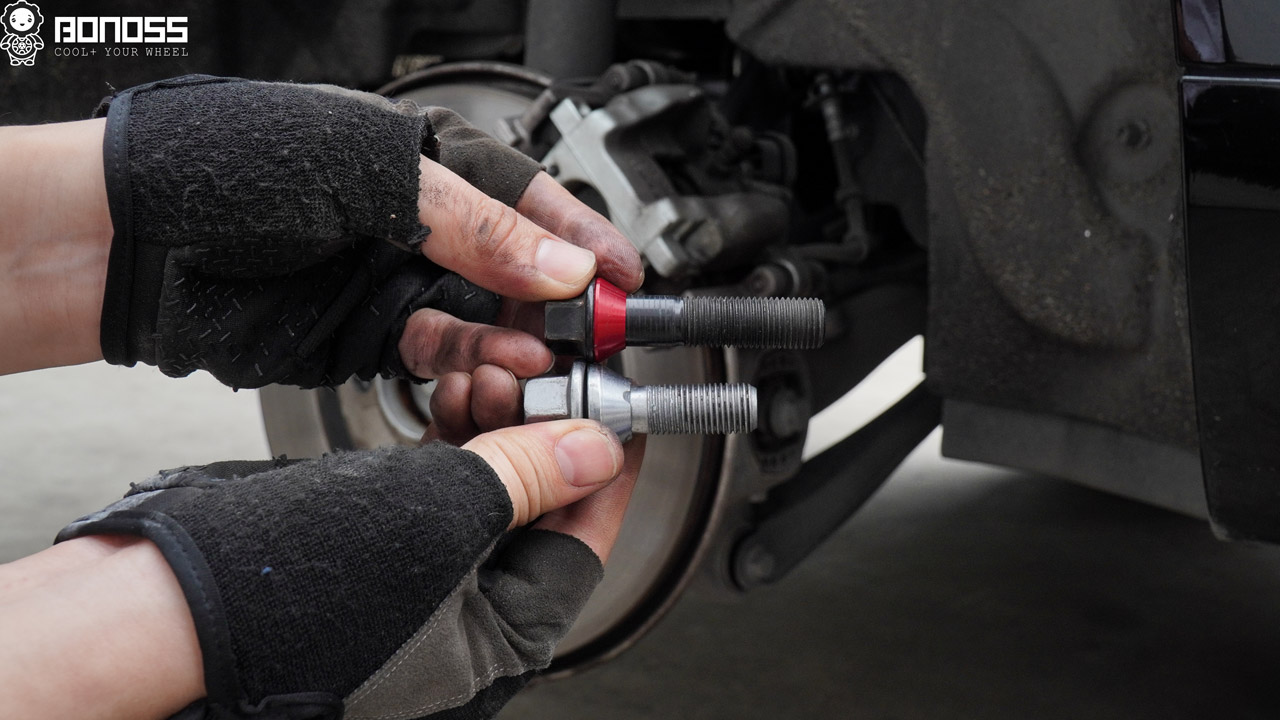

Most OEM Volvo XC90 wheel bolts are not designed to work on wheel spacers. It is recommended to buy a new wheel bolt kit when purchasing XC90 spacers. BONOSS offers high-quality JIS SCM440 steel extended wheel bolts, which have fully SGS, TÜV ISO Grade 12.9 certified, tensile strength≥1,282Mpa, limited life range test≥2,000,000 stress cycles without damage, ultimate tensile load≥152,000N, hardness (HV)≥395, NSS≥192H. Each BONOSS Volvo XC90 extended wheel bolt is “BONOSS engraved”, meaning these M14x1.5 extended wheel bolts are made by BONOSS’s own factory, the quality is guaranteed, customers’ interests are protected, and BONOSS takes the quality responsibility. 27mm – 75mm wheel bolts are available to fit your spacers.

How Much Do Volvo 5×108 Wheel Spacers Cost?

  • BONOSS has Volvo 3mm-20mm hubcentric wheel spacers in stock. We also offer non-normal thickness’s customized service, completed only in 1-3 days, 3mm-160mm thick is available, OEM/ODM is available. Common requests from our customers include PCD conversion, CB conversion adapters for aftermarket wheels (e.g., Volvo wheel adapters 5×108 to 5×112, 5 lug to 6 lug wheel adapters, 4×108 to 5×108 wheel adapters).
  • The prices of BONOSS Volvo XC90 wheel spacers are from $52.76 to $263.99. Generally, it takes 3-7 working days to arrive. Aviation, weather, politics, and customs inspection may cause a delayed delivery. But it usually doesn’t take long, please feel free.
  • BONOSS Volvo XC90 Hubcentric Wheel Spacers are 10 Years Worry-free Warranty, which is an excellent and cost-effective choice for wheel upgrades. Professional production experience and excellent product quality make us confident to provide a Super Long Warranty Service up to 10 years that far exceeds the period of most brands.

Interested in purchasing? Click HERE to know more!
