Using Model Y spacers is a good idea to improve the ride quality. By pushing the wheels and tires outwards, spacers increases the track width. Overall, a wider track is better for the car’s appearance and performance. The tires are set further away from each other which allows for less vehicle roll in cornering. This provides better handling.
When pushing the wheels out, you get more inside rim space. The increased wheel clearance keep the bigger brake calipers from rubbing the wheel spokes. As long as you torque them properly, high-quality hub-centric spacers won’t cause vibration at high speed. In this article, we’ll explore what factors contribute to Model Y spacers safety.
How to Choose the Best Model Y Spacers?
Fitting Big Brake Kit:
If you need Model Y spacers to clear big brake calipers and don’t want to drastically alter the OEM wheel style, then 3mm to 5mm spacers are just enough. They’re subtle and don’t make a big difference.
Perfect Flush Fitment:

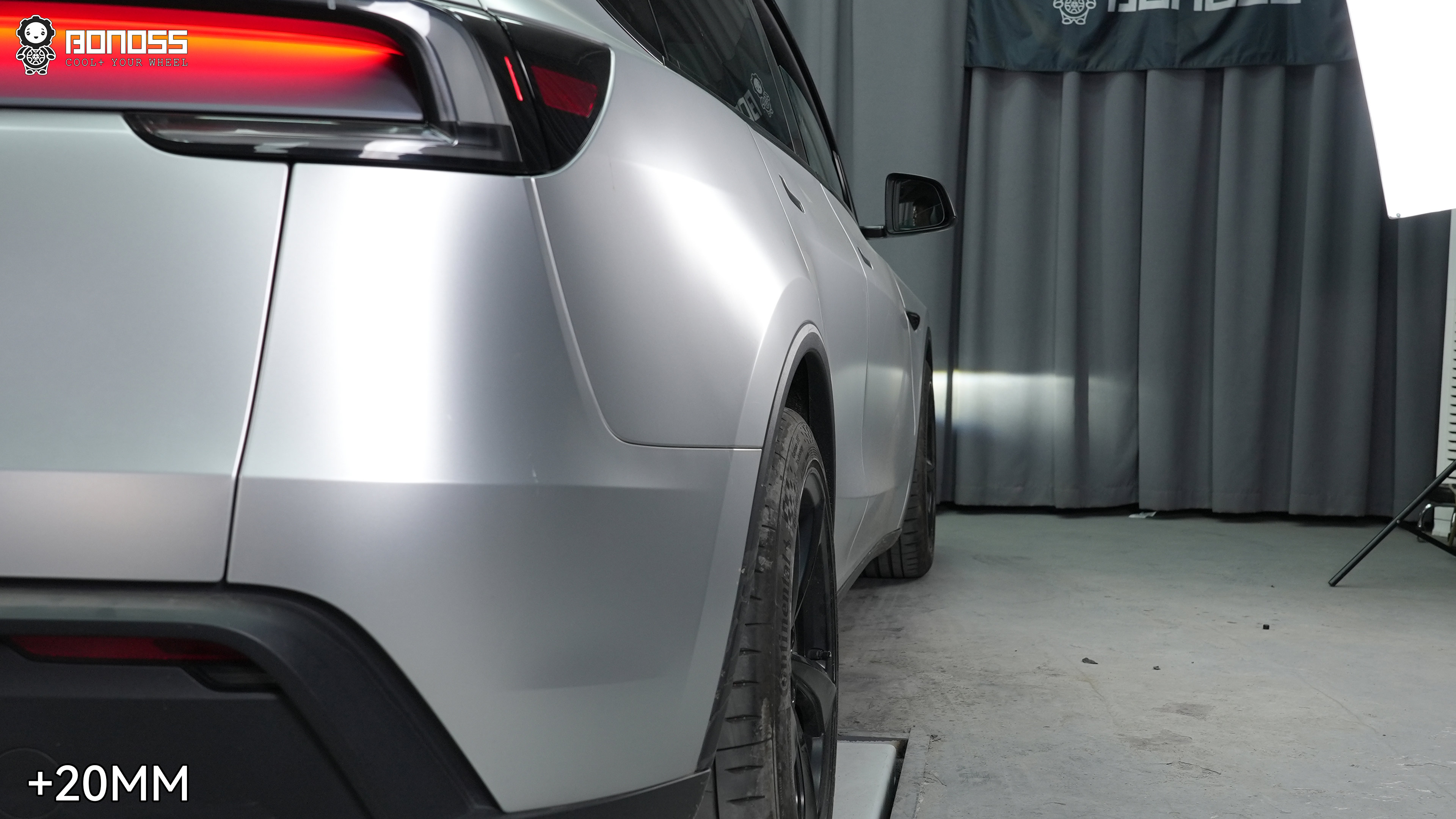

If you would like a perfect flush look, then you may have to do some measurements. Take a straight edge and place it against the outermost part of the rims/tires, then measure from the outside wheel to the fender line. If the value is about 18mm, then 18mm wheel spacers provide a perfect flush stance.
Extra Modifications:
If you added a wide-boy kit with stock wheels and tires, you would need above 30mm wheel spacers to avoid rubbing issues. A wide-body car with proper Model Y spacers looks bolder and more powerful.
Bolt Pattern (PCD):
To ensure a safe fit, the spacer bolt pattern must be the same as the vehicle lug pattern. Double-check the vehicle bolt pattern in your owner’s manual before buying a set. For example, Tesla Model Y (2020-2026): PCD=5×114.3mm, CB=64.1mm, Thread=M14x1.5mm.
Torque Specs:
The REFERENCE torque spec for Model Y spacers is 103.5 ft-lbs (140 Nm). This is just a reference value. It’s best to check your vehicle’s manual or consult a professional to find out the exact specifications before operating.
Who Makes the Best Model Y Spacers?
Brand manufacturers focus on quality and performance. Before leaving the factory, BONOSS’s tech staff will do a series of inspections on the finished Model Y spacers to check for any defects. They measure the individual aspects of the spacers to make sure that they meet the design specifications. BONOSS offers several key advantages that make their spacers a top choice.
1. Active Cooling for Better Braking

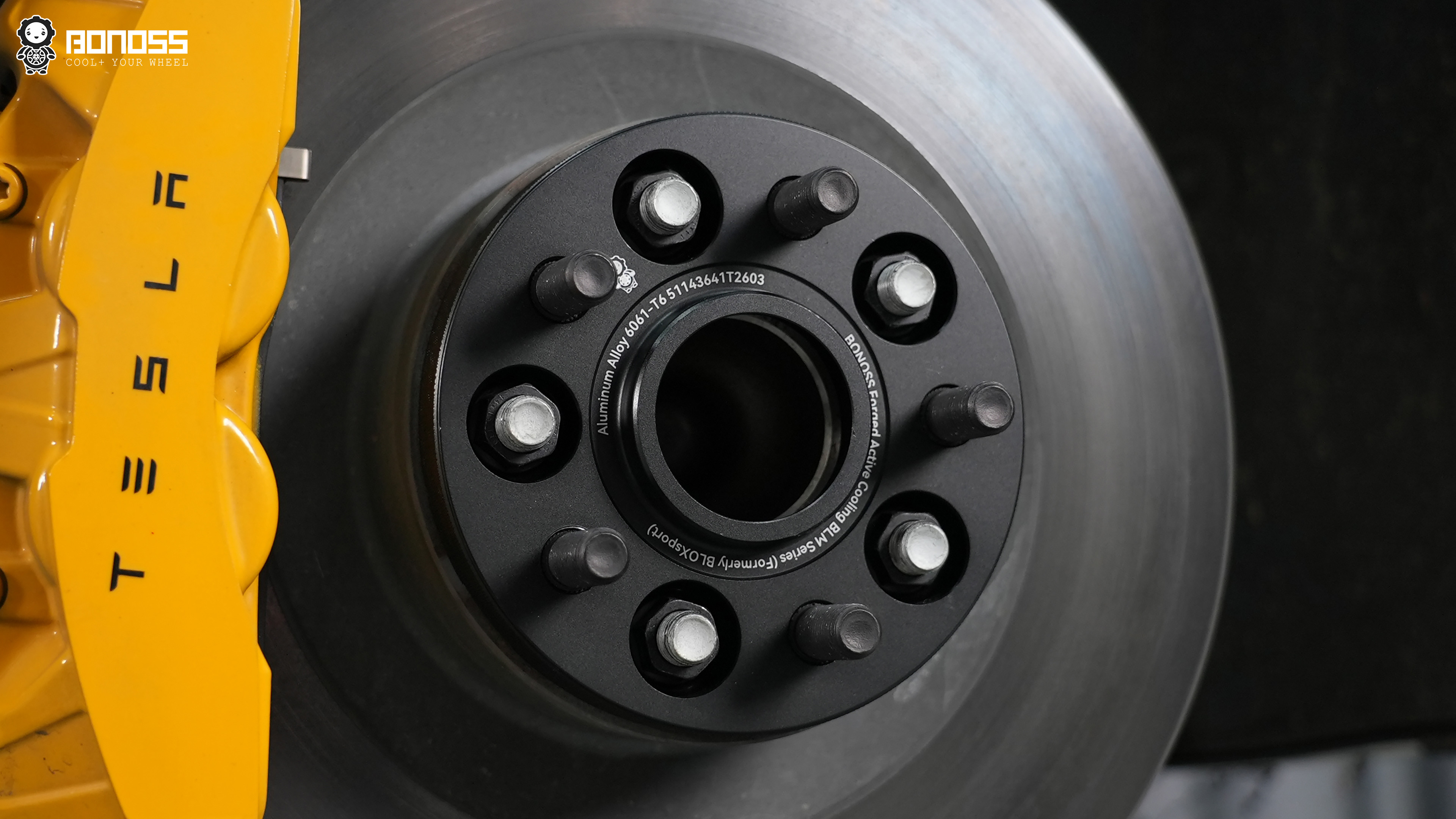

BONOSS forged active cooling Model Y spacers come with petal-shaped grooves. The grooves allow the external cold air to flow continuously inside the spacer when it rotates. The air takes away the heat, actively dissipating heat for the braking system. This is good for performance brakes.
2. Precise Hub-centric for Zero Vibration

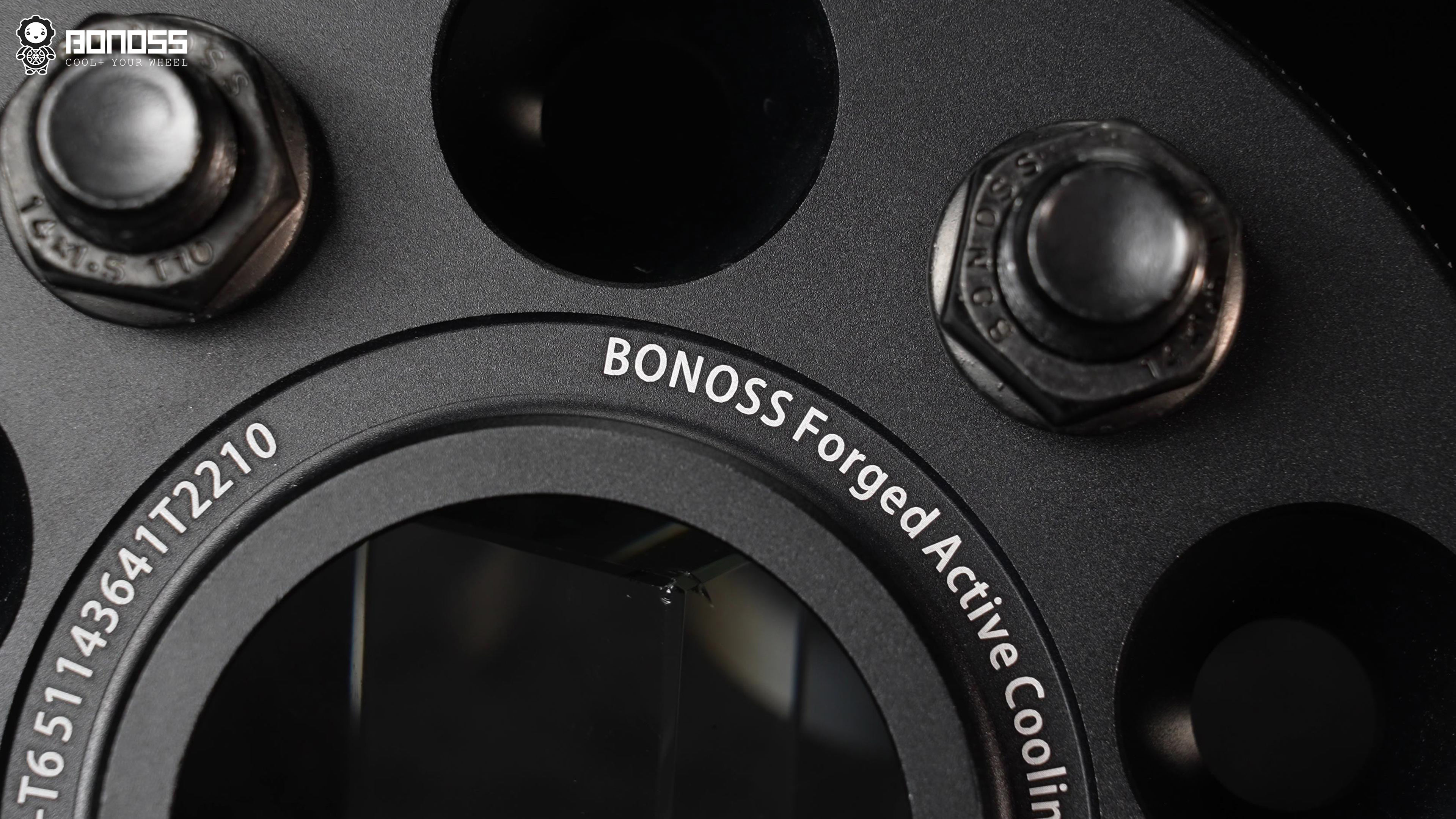

BONOSS forged active cooling Model Y spacers are designed with better multi-stage hub-centric lips. The hub-centric metal ring is machined to be multi-layers, and the bevels fit the corresponding hub flange, which eliminates any kind of vibrations.
3. Full-cone Lug Seat for Improved Stability
What’s better, BONOSS forged active cooling Model Y spacers come with full-cone lug seats. Full-cone seat design allows the studs and nuts to apply enough clamping force to lock the spacers, avoiding any potential loosening risks.
Final Summary: Elevate Your Wheel Style with BONOSS
With attention to innovative engineering and a relentless pursuit of quality manufacturing, BONOSS forged active cooling Model Y spacers surely give you the perfect wheel style and fitment along with confidence for years. Choose BONOSS and experience the difference—engineered for those who demand the best.
(Hi, I’m Kevin Brian, an experienced mechanical engineer. All articles, images, and videos are human-produced to ensure the best user experience. They are not generated by Artificial Intelligence (AI) Models or tools.)
