The Ultimate 2021 Tesla Model 3 Performance Spacer Wheel Flsuh Fitment Guide
Last day BONOSS wheel spacer engineers got to test out the 2021 Tesla Model 3 Performance. Here are the OEM sizes of this car:
- Wheel offset: +33 to +40
- Flush wheel spacer size: front 15mm / rear 20mm
- Bolt pattern (PCD): 5×114.3mm
- Center bore (CB): 64.1mm
- Lug nut size: M14x1.5mm
If you are an owner of the 2021 Tesla Model 3 Performance and planning to buy a fresh set of forged wheel spacers from us, don’t hesitate, BONOSS company has got you covered.
The Fender Gap Measurement
Take a straight edge and place it against the outermost part of the rims/tires, then measure from the outside wheel to the fender line. For more details, check out how to measure wheel spacers for my vehicle.
Front flush wheel spacer sizes: 15mm
Rear flush wheel spacer sizes: 18mm or 20mm
The PCD CB Measurement
The bolt pattern of the 2021 Tesla Model 3 Performance is 5×114.3mm and the center bore is 64.1mm. Wheel lug pattern is one of the key factors to identifying wheel spacer dimensions.
2021 Tesla Model 3 Performance bolt pattern (PCD): 5×114.3mm or 5×4.5″
2021 Tesla Model 3 Performance center bore (CB): 64.1mm
2021 Tesla Model 3 Performance OEM wheel hub bore: 64.1mm
Measuring the vehicle hub height and inner wheel bevel is helpful to make the precise hub-centric wheel spacers.
So that BONOSS hub-centric wheel spacers can 100% fit the wheel hub protrusion, ensuring perfect wheel fitment.
The Wheel Stud Length Measurement
Measuring the OEM wheel stud length (the protruding part of the wheel hub) is important to know whether you need to cut wheel studs for 2021 Tesla Model 3 Performance wheel spacers.
Then measure the cavity depth in your wheels to check out how much it will allow for the stud to go past the wheel spacers.
If the wheel pockets depth + spacer thick ≥ stud length, then you don’t need to trim the stock wheel studs to fit wheel spacers.
For example, you don’t have to cut the OEM Tesla Model 3 Performance wheel studs for 25mm wheel spacers.

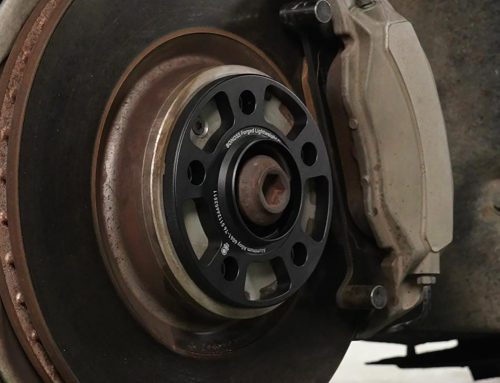

2021 Tesla Model 3 Performance Wheel Spacer Before and After
There are 15mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, and 50mm wheel spacers available for 2021 Tesla Model 3 Performance. Selecting the right size is a personal decision based on your preferences.
For front wheels, you can go with 15mm spacers for a flush stance.
For rear wheels, you can go with 20mm spacers for a sporty wheel style, or 25mm spacers for a more aggressive stance.
It is a good idea to pick up some new forged 50BV30 steel lug nuts to improve the performance.
BONOSS also provides forged Titanium lug nuts & wheel locks to decorate your wheels while protecting the wheels from being stolen.
Browse BONOSS Products for 2021 Tesla Model 3 Performance
AL6061-T6 types (for daily driving)
AL7075-T6 types (for spirited driving, racing, and drifting)
Forged 7075-T6 Wheel Lug Nuts
