2020 Lexus GX 25mm Wheel Spacers Before and After: 30,000-Mile Expert Q&A

When someone asks whether 2020 Lexus GX 25mm wheel spacers actually hold up in the real world, Rick Wilson’s 2020 Lexus GX460 — the J150 platform, the one Toyota still sells in North America as the body-on-frame luxury SUV that refuses to die — is the truck that answers the question. Bone stock. No lift, no aftermarket wheels, no suspension mods. On July 8, 2024, Rick’s GX460 received a set of BONOSS forged 6061-T6 hub-centric spacers, 25mm front and rear. Thirty thousand miles later, the verdict is short: no vibrations, no rubbing, nothing wrong at all.

This is not a spec-sheet regurgitation. Every number in this article comes from a real installation on Rick’s truck — measured with a high-accuracy ruler and a vernier caliper by our staff, not pulled from a catalog. If you are staring at your GX460’s tucked-in factory wheels and wondering whether 25mm is the right call, whether it holds up under towing, and what torque wrench setting to use, here is what happened when someone actually did it and kept driving.

Two torque values, two steps, two sources. Tighten the BONOSS spacers to the axle hub using BONOSS lug nuts at 113 Nm (83.3 ft-lb), per BONOSS installation instructions. Tighten the wheel to the spacer using your factory lug nuts at 103 Nm (76 ft-lb), per the owner’s manual. Both values are correct for their respective fastener — do not cross them. Use one torque value for each step of the installation.

Are 25mm Wheel Spacers Safe on a 2020 Lexus GX460?

Is it safe to run 25mm spacers on a stock GX460?

Yes — and the evidence is not just Rick’s 30,000-mile track record. The BONOSS spacers on his truck are forged from 6061-T6 aluminum and carry over 75 SGS and TÜV Rheinland test reports. Two certifications matter here. The TÜV hardness test, conducted per ISO 6506-1:2014, returned a Brinell hardness of 101–103. That is the expected range for structural forged aluminum — not soft cast material, not re-melted scrap. The neutral salt spray test, conducted per ISO 9227:2022+Amd 1:2024, ran for 240 hours with zero defects. Translation: the surface held up under sustained salt exposure. If you live somewhere roads get salted from November to March, that number matters. The full hardness test report is published for independent verification — we do not ask you to take our word for it.

Different labs, different samples, and measurement variance will produce slightly different readings. The numbers above are the values recorded in the cited TÜV reports. They are representative, not universal.

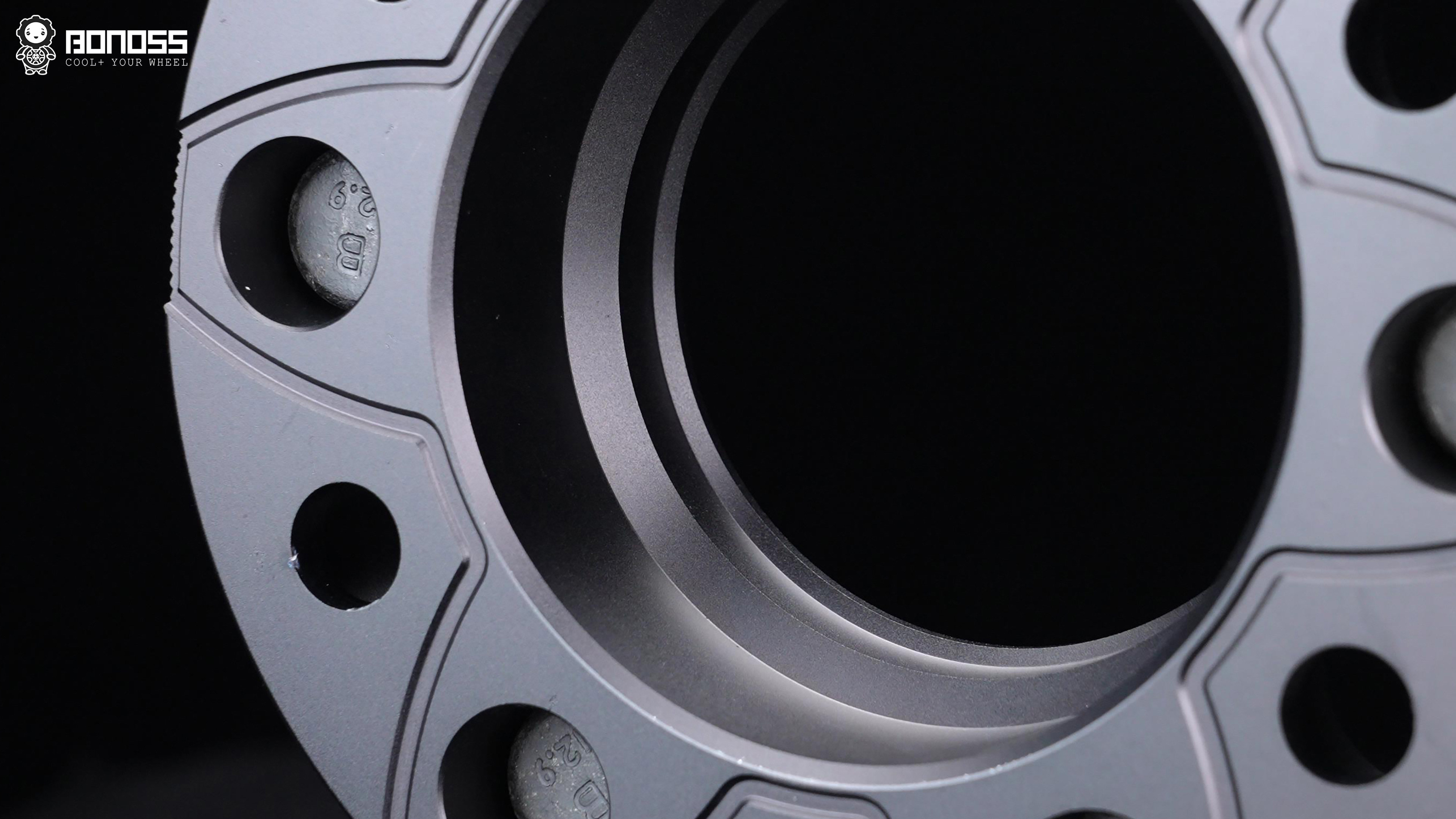

The active cooling design — discrete grooves machined into the spacer body — is not decorative. It creates airflow pathways that help dissipate brake heat through the spacer itself. On a 5,300-pound SUV that sees towing duty and highway speeds, brake thermal management is not theoretical. Combined with the multi-stage hub-centric structure, the load path runs through the hub pilot, not just the studs. That is the mechanical difference between a spacer that holds torque for 30,000 miles and one that works loose by mile 500. The BONOSS forged active cooling wheel spacers for the Lexus GX460 use the same architecture across their J120, J150, and J250 coverage.

Is it safe to tow with 25mm wheel spacers on a 2020 GX460?

Rick tows with his GX460, and after 30,000 miles, he has reported zero issues. A 25mm-per-side track width increase — 50mm total — adds lateral stability without pushing the wheels past the fender line. The math: factory ET25 offset drops to ET0, which moves each wheel 25mm outboard. That is enough to fill the fender arch on a stock-height truck without creating a rubbing scenario under compression.

What about hub-centric versus lug-centric on a 6×139.7mm bolt pattern?

Hub-centric is non-negotiable on a truck this heavy. A lug-centric spacer centers the wheel on the studs alone — fine for a lightweight passenger car, risky on a 5,300-pound SUV that tows. The BONOSS spacer uses a multi-stage hub-centric design: the axle-side bore matches the 105.98mm hub, and the wheel-side pilot matches the 106.1mm wheel center bore. Both interfaces carry the vehicle’s weight through the hub, not through stud shear. That is why Rick can report zero vibrations at highway speed after 30,000 miles — the hub is doing its job. Lexus GX460 hubcentric wheel spacers are not optional on a truck this heavy; they are the only design that makes mechanical sense for a 6×139.7mm bolt pattern carrying a loaded SUV.

Will 25mm Spacers Give My GX460 a Flush Stance?

How did you determine 25mm was the right thickness?

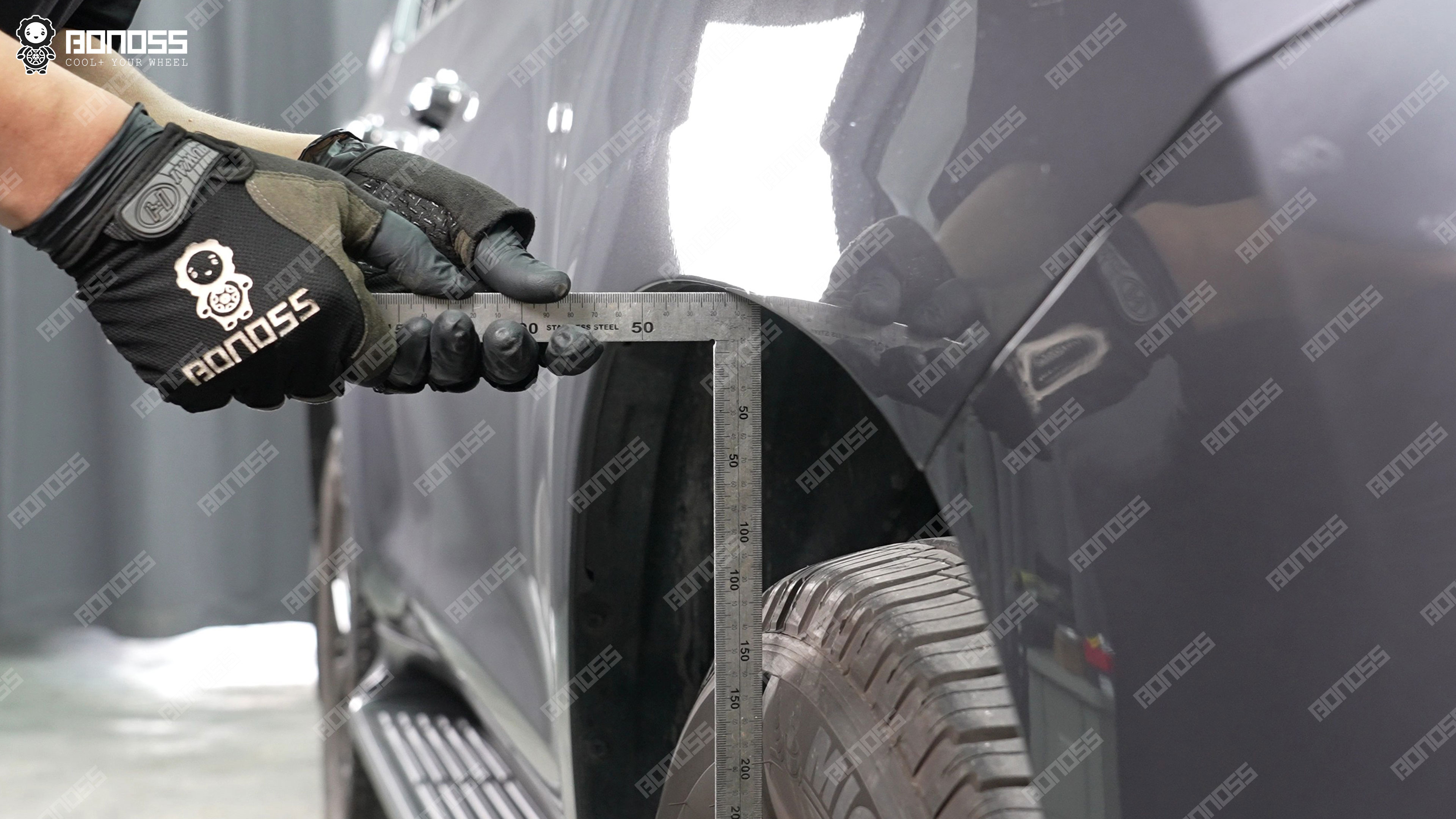

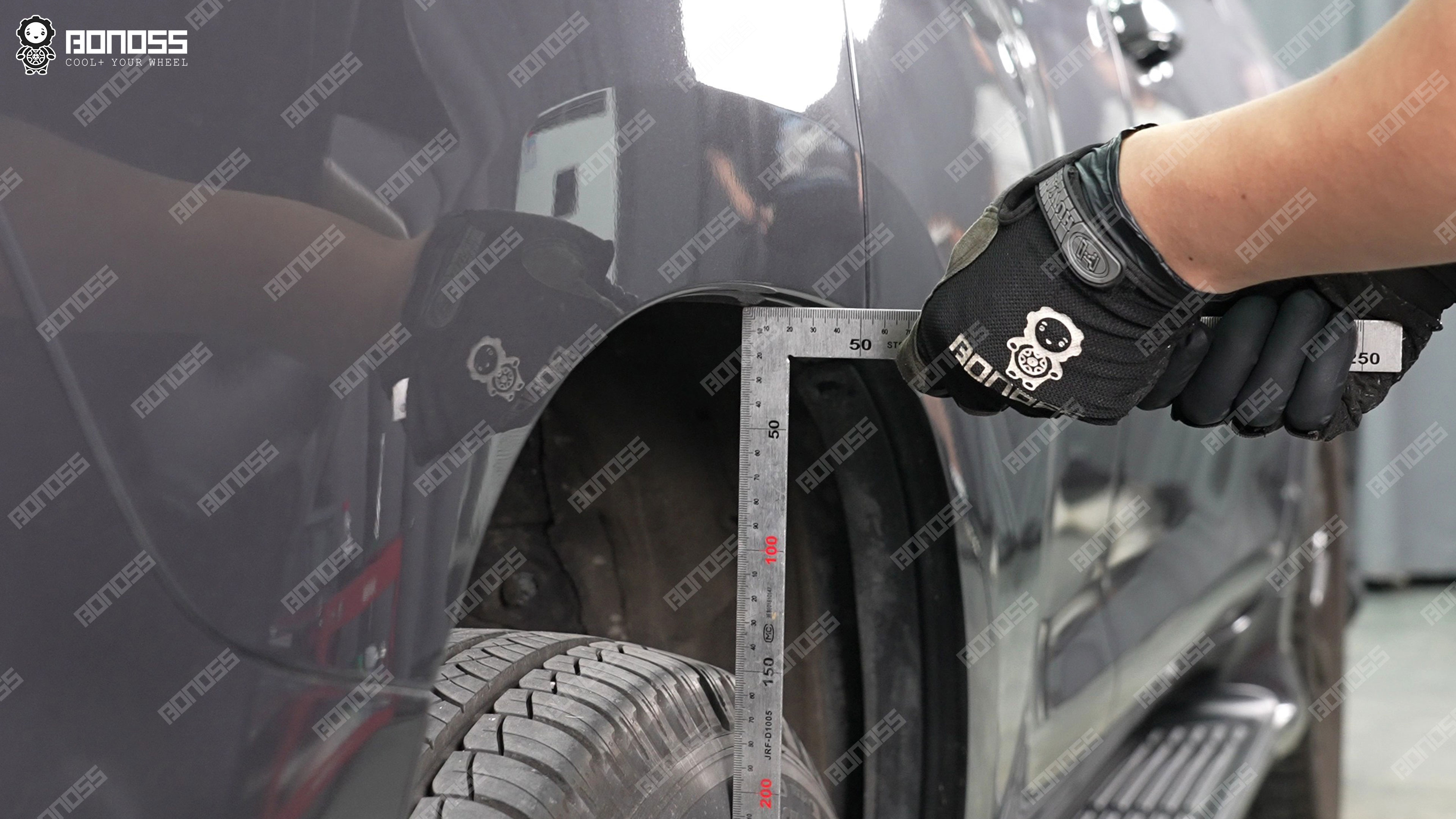

We measured it. Before recommending a thickness, our staff used a high-accuracy ruler to check the fender-to-wheel gap on Rick’s truck. Front: 25mm to flush. Rear: 25mm to flush. Same number, both axles — which means a square set of four identical spacers gets the job done. No staggered setup, no front-only confusion. Four 25mm units, bolt-on, done.

What is the bolt pattern and center bore for a 2020 Lexus GX460?

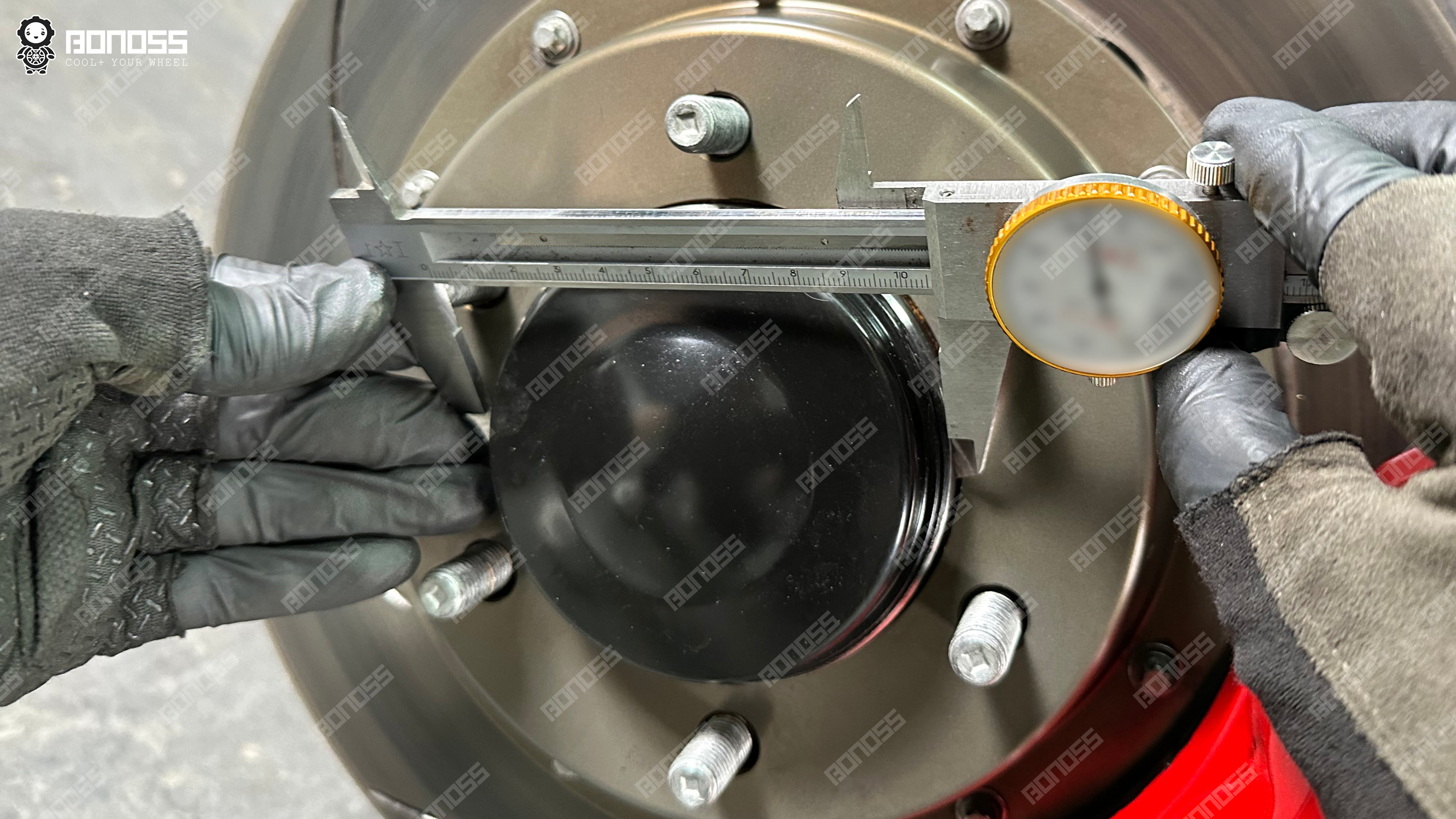

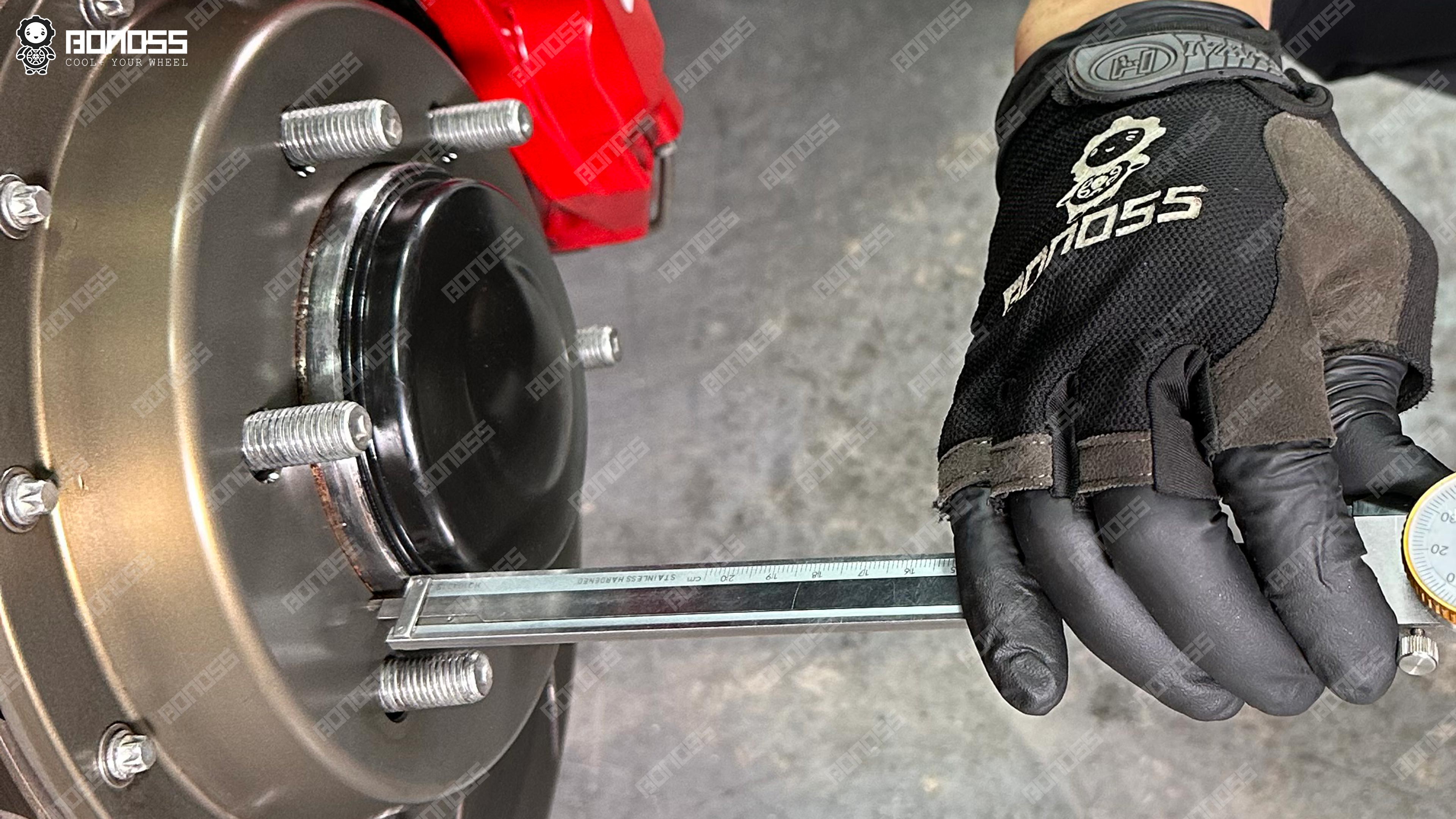

The GX460 (J150) uses a 6×139.7mm bolt pattern with a 106.1mm wheel center bore and M12x1.5 thread pitch. The axle hub outer diameter measured 105.98mm with a vernier caliper. That 0.12mm difference between the axle (105.98mm) and the wheel center bore (106.1mm) is not a defect. Lexus builds in assembly clearance and anti-corrosion margin at the factory. No hub is truly zero-gap from the factory — if it were, you would need a press to mount a wheel.

What about the spacer’s center bore — why is it 106mm?

This is where manufacturing precision separates a good spacer from a dangerous one. The BONOSS spacer has a 106mm outer pilot diameter on the wheel side and a multi-stage internal bore on the axle side to match the 105.98mm hub. The 0.1mm diameter clearance between the spacer (106mm) and the wheel (106.1mm) works out to 0.05mm per side. Tight enough for true hub-centric load transfer. Loose enough to slide on without binding. BONOSS machines these surfaces to 0.02mm CNC tolerance to keep both mating faces concentric. For a deeper look into available thicknesses, the GX460 wheel spacers sizing guide covers the full range.

What lug nut socket do I need?

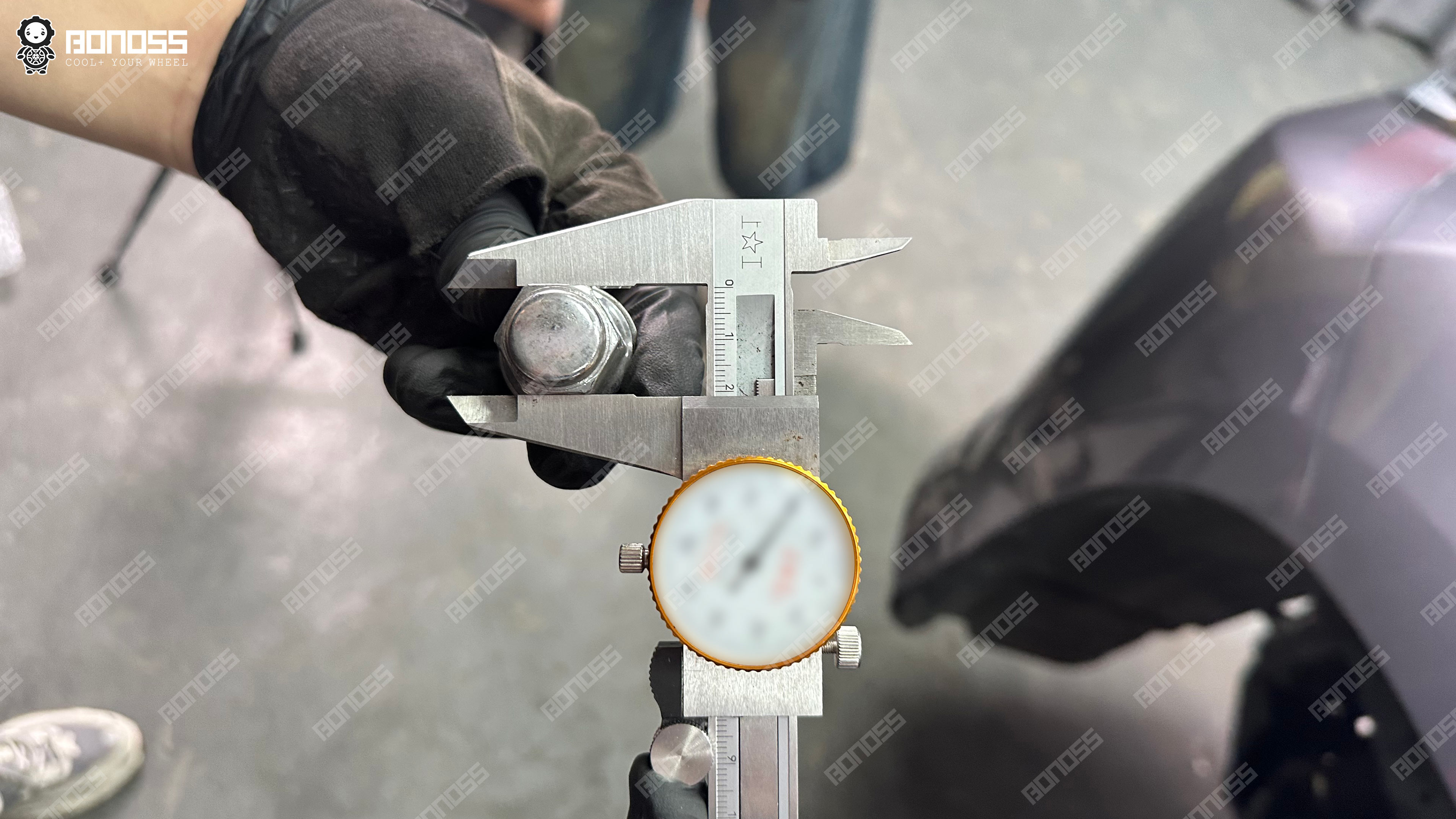

The factory lug nuts take a 21mm hex socket — measured and confirmed with a vernier caliper, not guessed from a parts diagram.

What Torque Do I Use for 2020 Lexus GX 25mm Wheel Spacers?

What torque spec should I follow?

Two values, two steps:

• Spacer to axle hub — BONOSS spacers with BONOSS lug nuts: 113 Nm (83.3 ft-lb), per BONOSS installation instructions.
• Wheel to spacer — factory wheel with factory lug nuts: 103 Nm (76 ft-lb), per the owner’s manual.

Both values are correct for their respective step. Do not use 113 Nm on factory lug nuts, and do not use 103 Nm on BONOSS hardware. Each torque value is bound to the specific fastener it was engineered for. Use one torque value for each step.

The logic is straightforward: BONOSS lug nuts are ISO Grade 10 with a full-cone seat, paired with ISO Grade 12.9 wheel studs. They are engineered to clamp at 113 Nm. Your factory lug nuts are a different material, a different seat design, and engineered for 103 Nm on the factory wheel-to-hub interface. Mixing torque values between the two fastener types defeats the engineering behind both.

Do I need to trim my stock wheel studs?

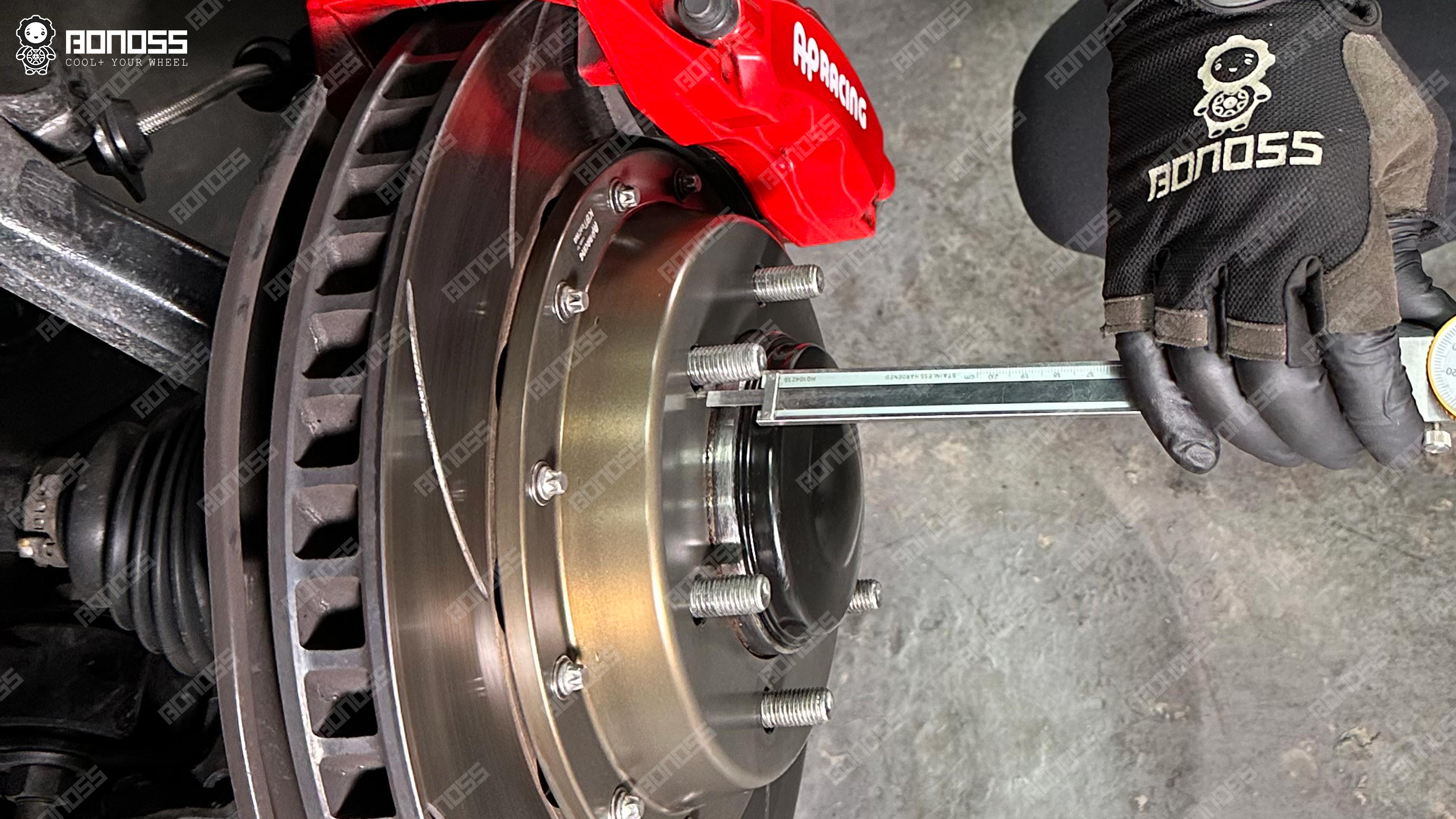

No. We measured the axle stud protrusion at 20.62mm with a vernier caliper. A 25mm spacer is 4.38mm thicker than the protruding stud length, so the factory stud sits below the spacer’s outer face. That means you can run wheels without wheel pockets — the recesses some manufacturers machine into the wheel’s mounting face to clear protruding studs — without trimming anything. If you later switched to a thinner spacer, say 15mm, you would need to verify protrusion against spacer thickness. At 25mm, the math is clean.

What about rust on the axle hub?

This is the part that catches people off guard. Rick’s GX460 was a factory-stock truck, and the axle hubs had surface rust buildup on the pilot surface — the machined ring that centers the spacer. Rust creates an uneven mating face. The spacer will not sit perfectly flat against the hub, and that is when vibrations start. Not because the spacer is bad, but because the surface it sits on is not clean.

The fix is simple but non-negotiable: spray rust penetrant, let it soak for several minutes, and sand the hub pilot surface with abrasive cloth until you see bare, uniform metal. Check the entire pilot ring — not just the visible top edge, but the full circumference. Our staff cleaned all four corners before installation, and that is likely a significant part of why Rick has had zero vibration issues across 30,000 miles. Skip this step and you are rolling the dice.

What is the correct installation sequence?

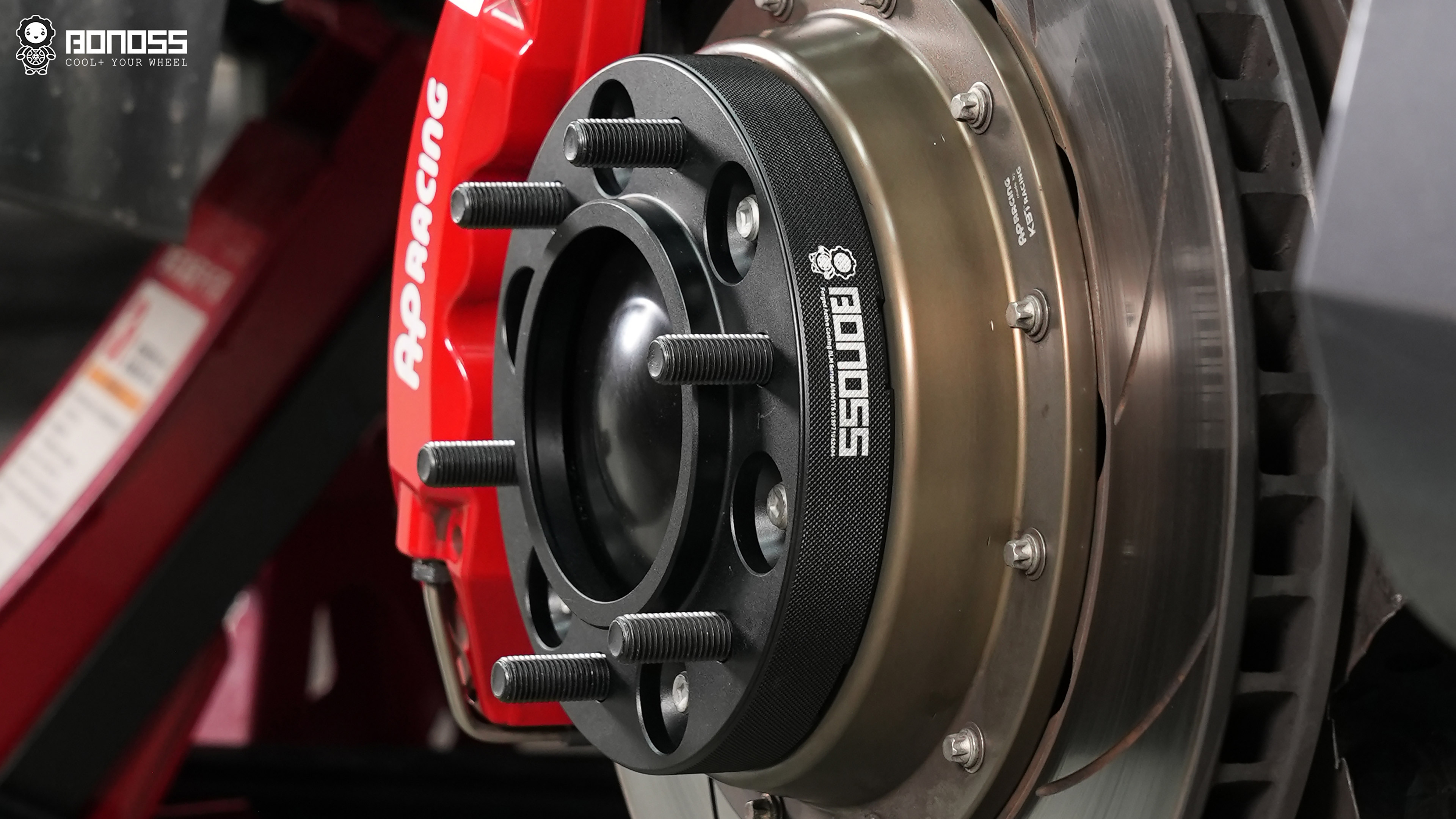

Bolt the spacer to the hub first, using the BONOSS lug nuts and the BONOSS-recommended torque. Then mount the wheel to the spacer using your factory lug nuts and the factory torque. Two separate torque procedures, two separate fastener sets. Do not try to torque everything in one pass. Tighten in a star pattern — not a circle — and re-check after 50 to 100 miles of driving.

How Do 25mm Spacers Hold Up After 30,000 Miles?

What does 30,000 miles of real-world use look like?

Rick Wilson installed his BONOSS spacers on July 8, 2024. Since then, he has put 30,000 miles on the truck — daily driving, towing, highway trips, and back roads. Here is what he said:

“People always say, “Just get the right offset wheels so you don’t need spacers.” But not everyone wants aftermarket wheels, and not everyone can afford a new set. So I went with BONOSS spacers to get the flush look I wanted. Put 30k miles on them—no vibrations, no rubbing, nothing wrong at all.”

“Customer service was great, and the spacers themselves are top-notch. Way better price than buying new wheels with the right offset. Couldn’t be happier.”

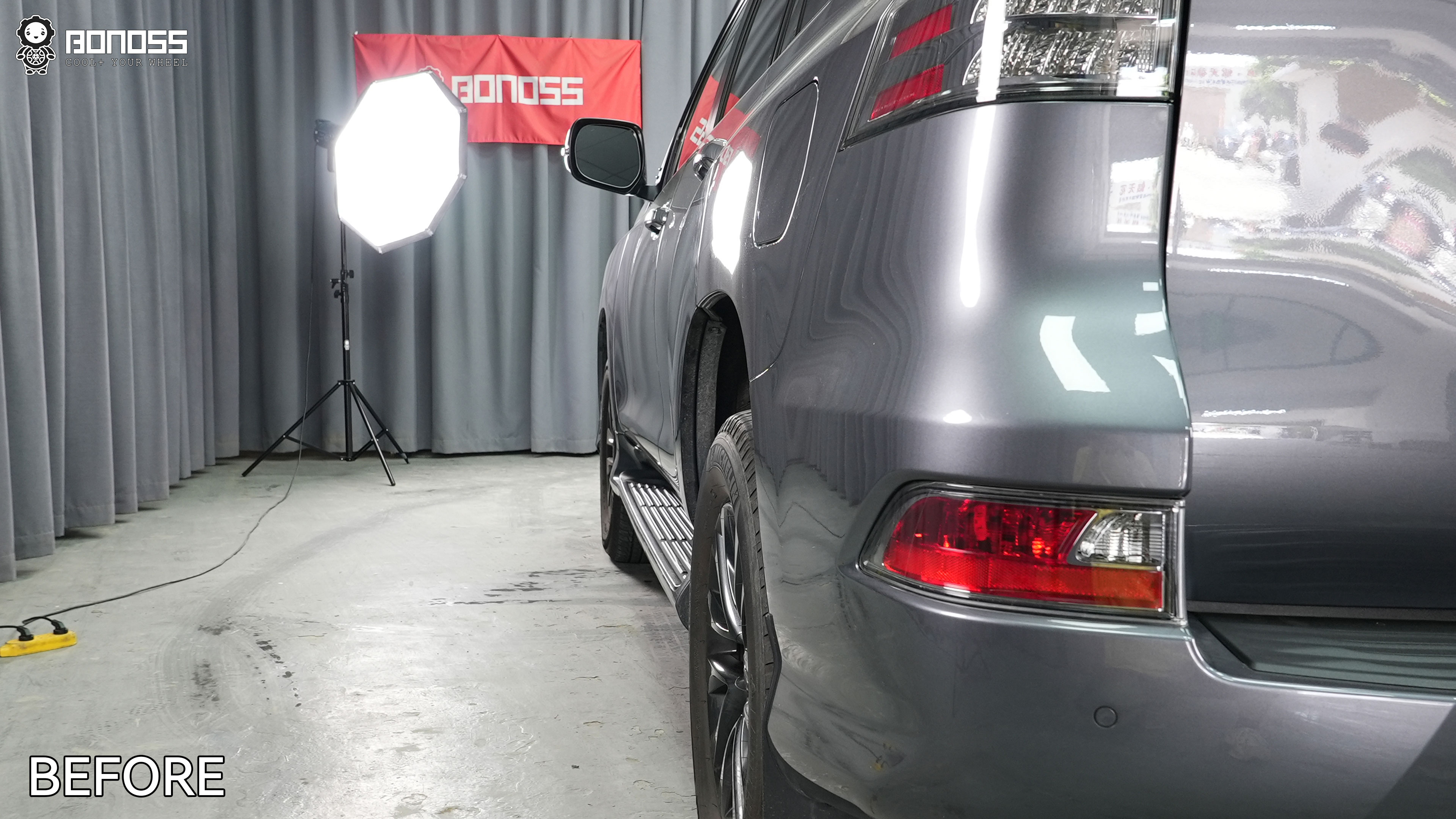

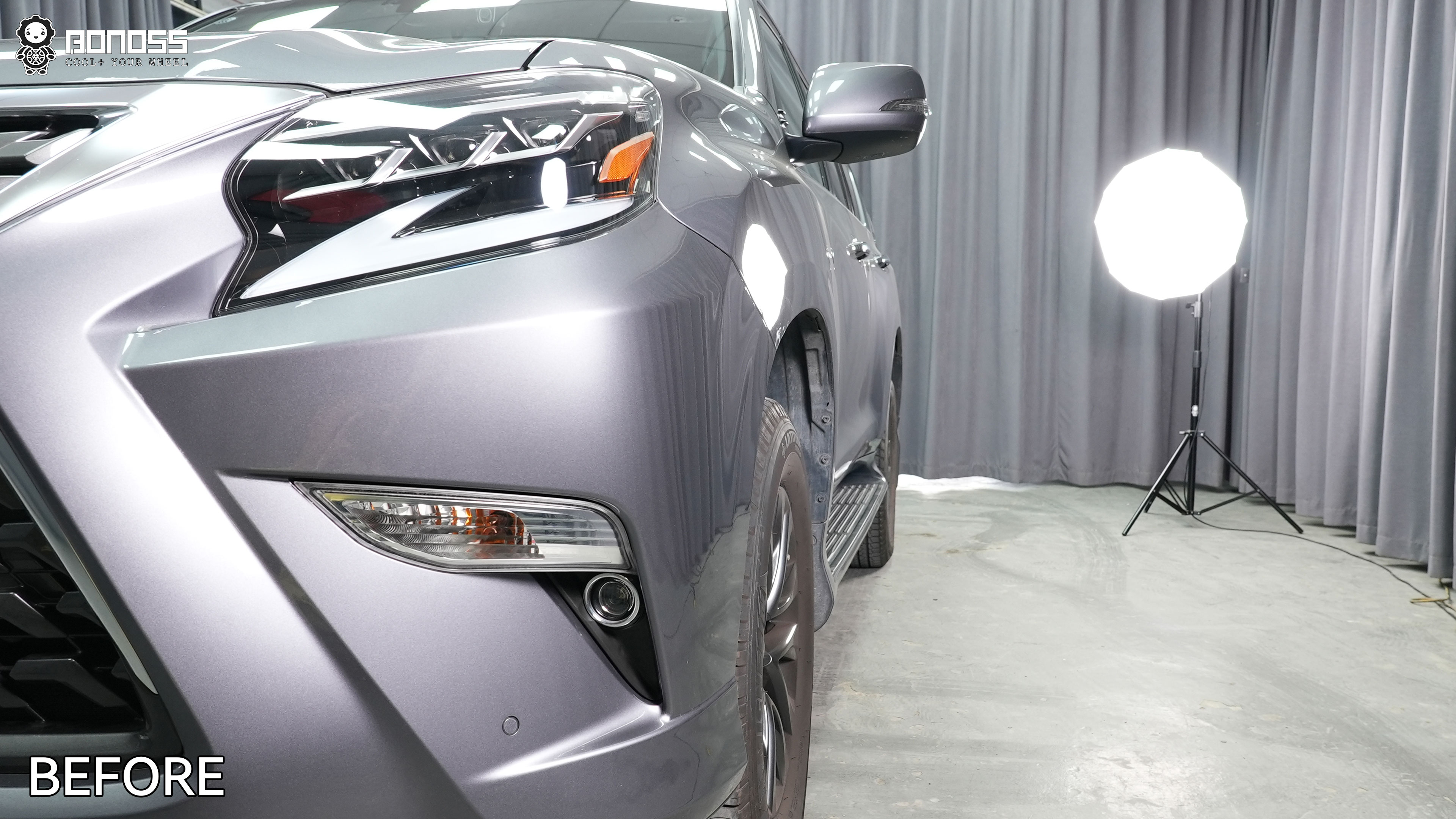

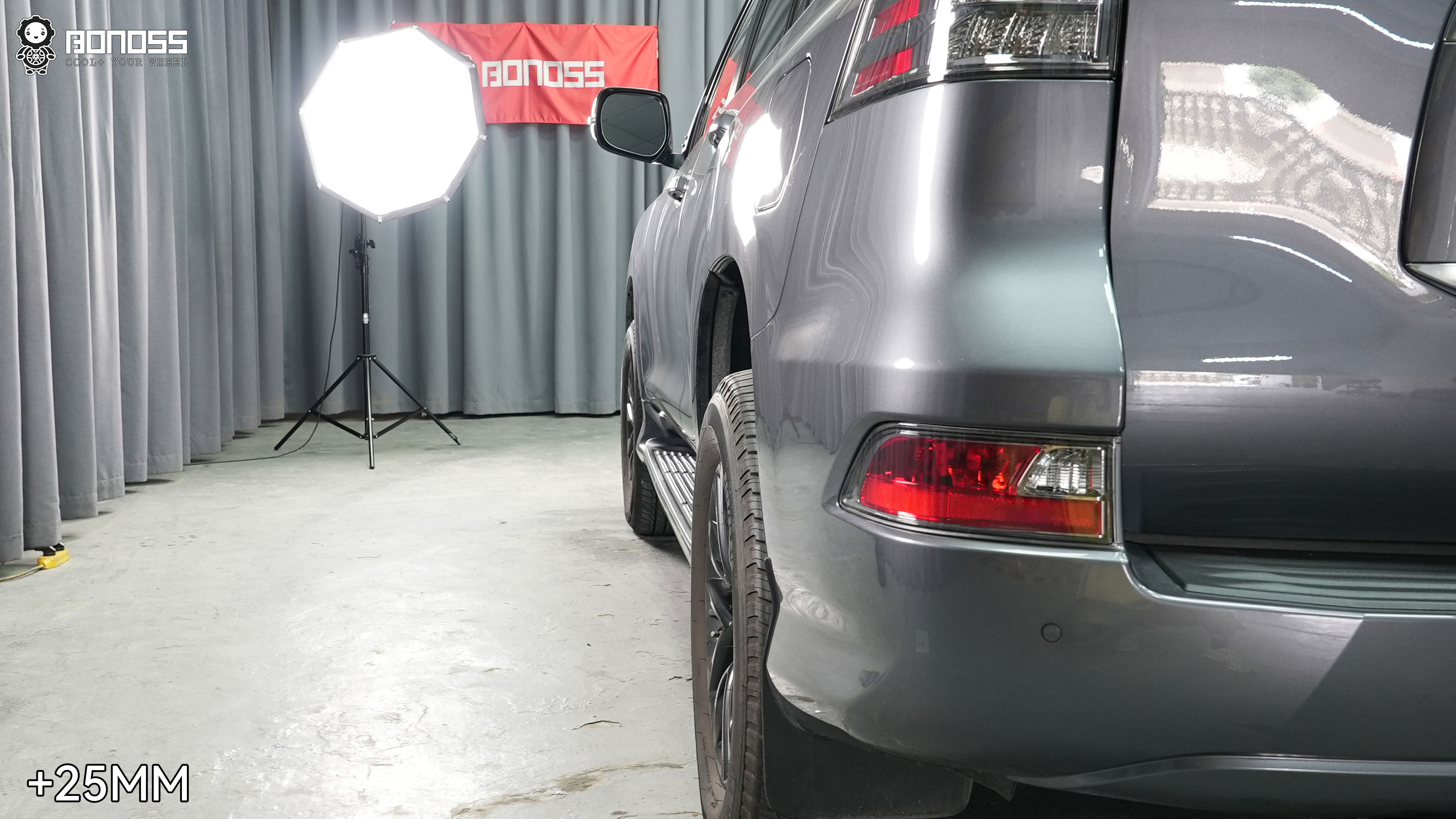

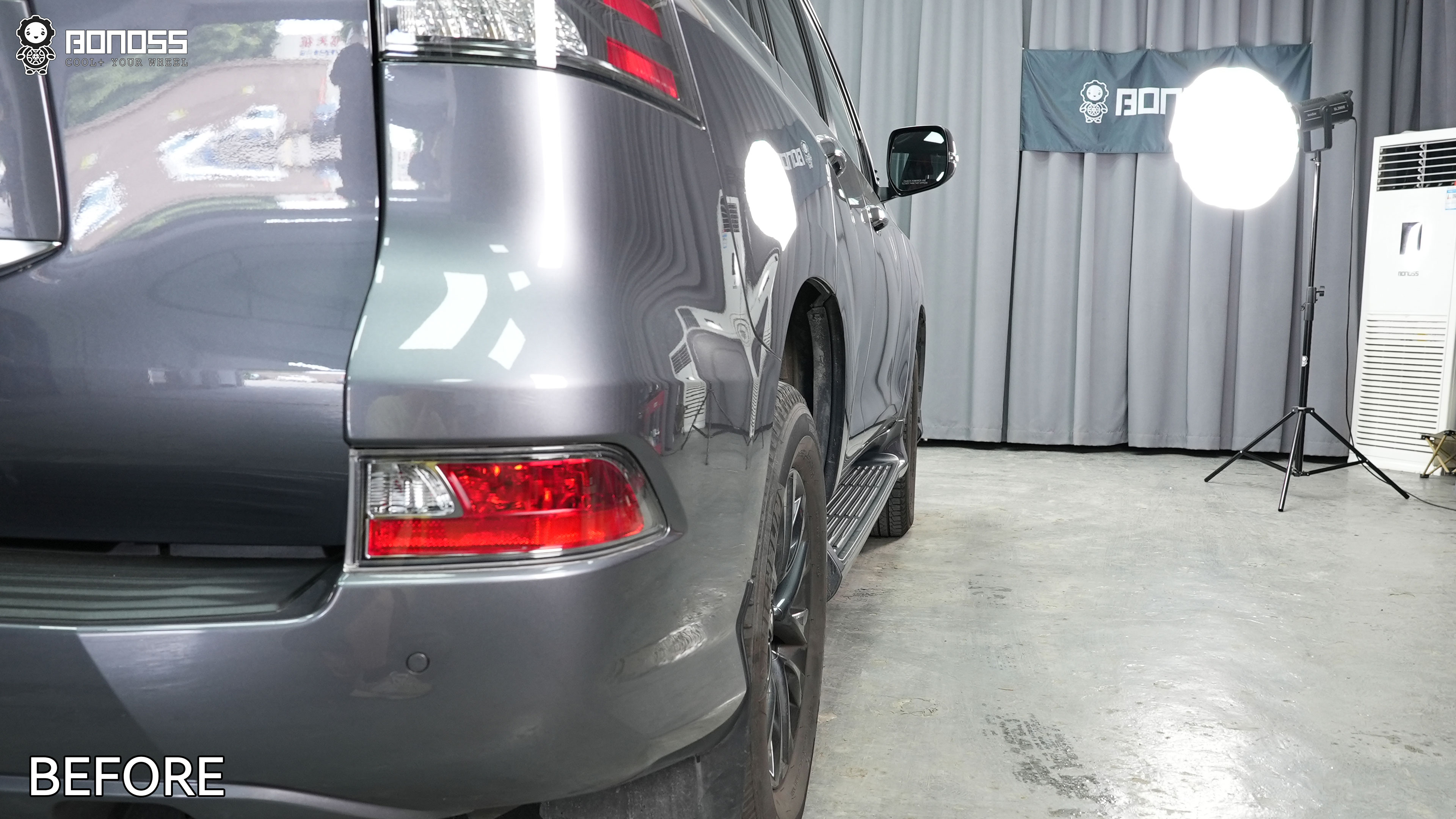

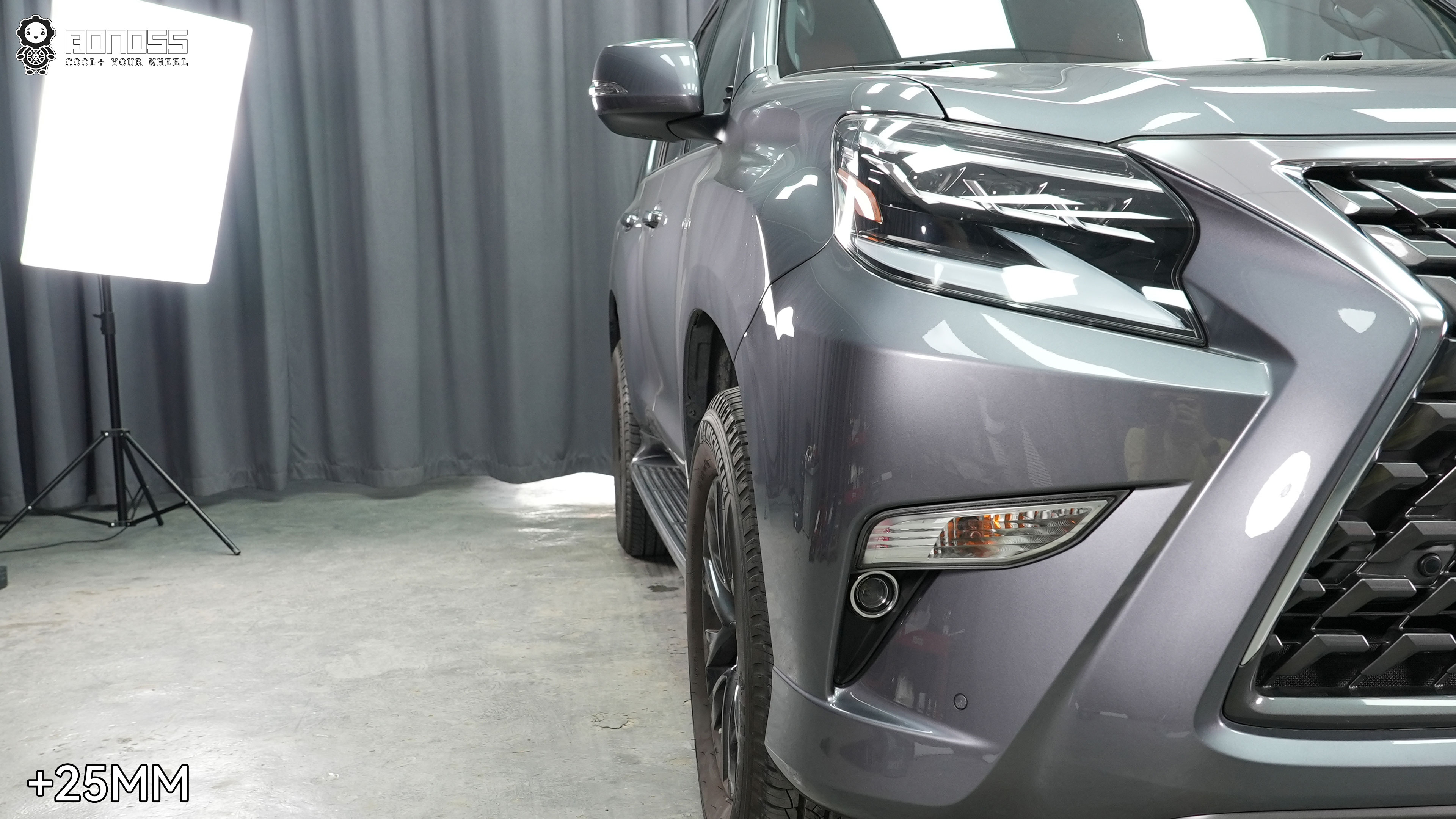

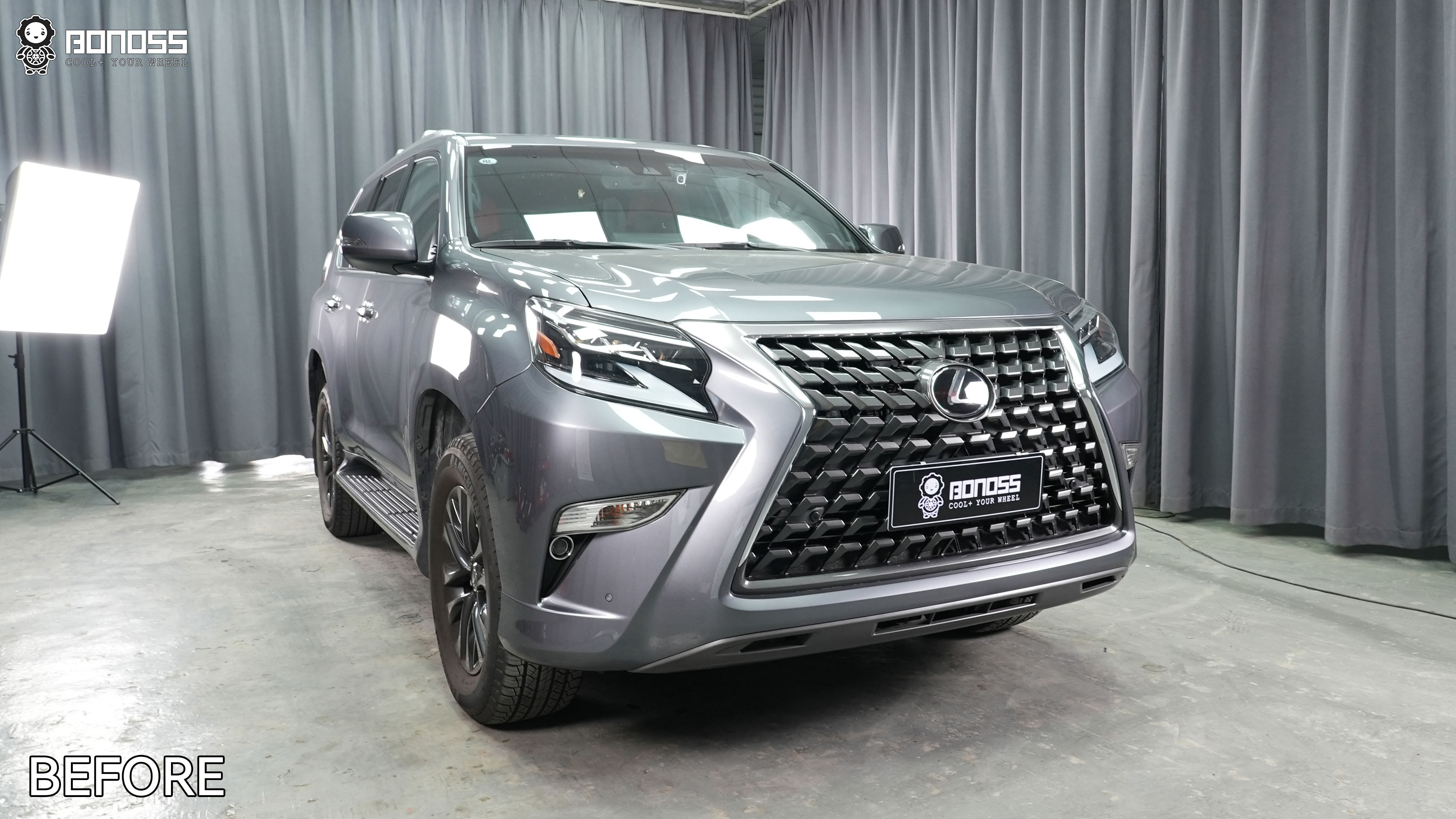

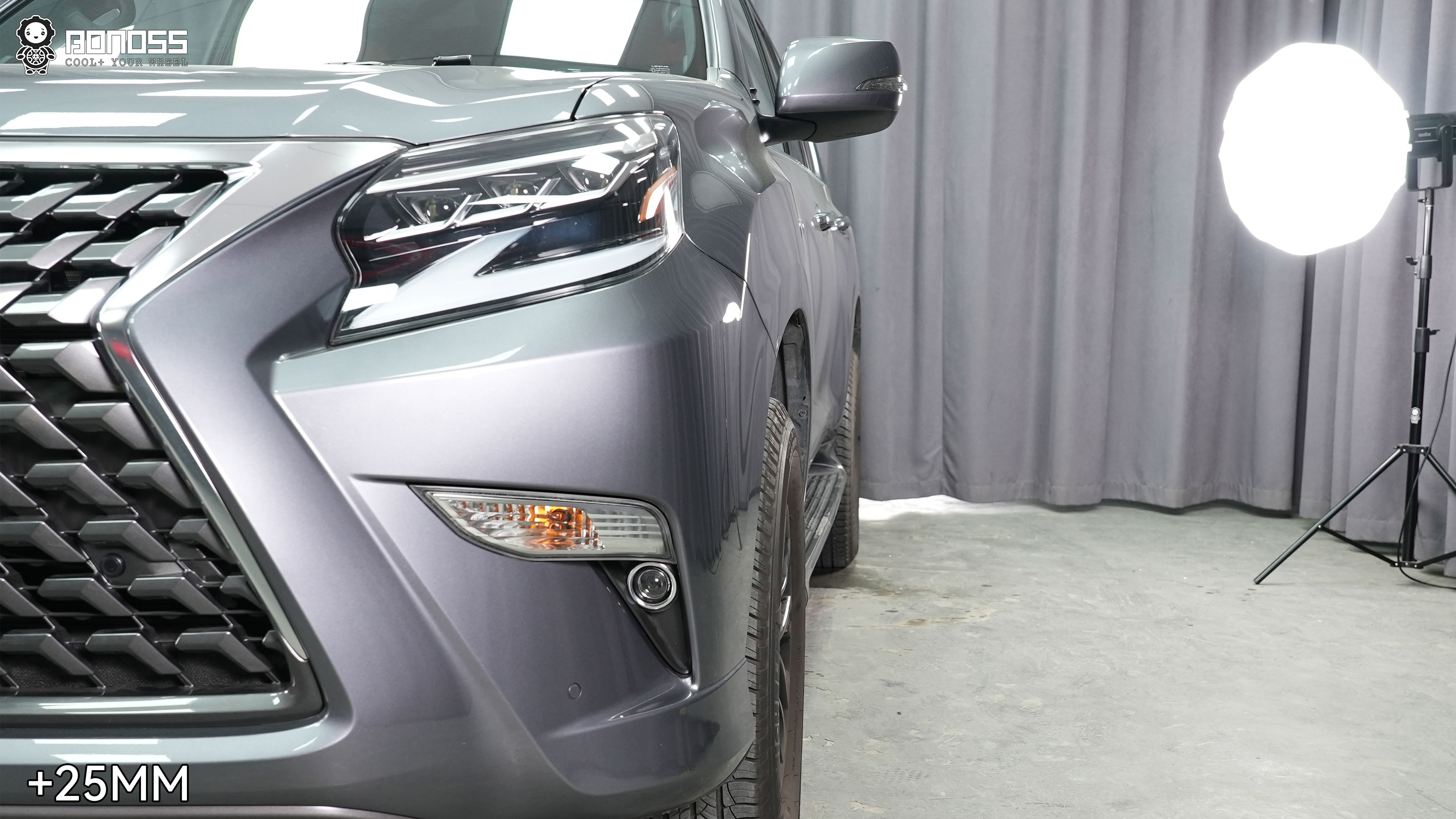

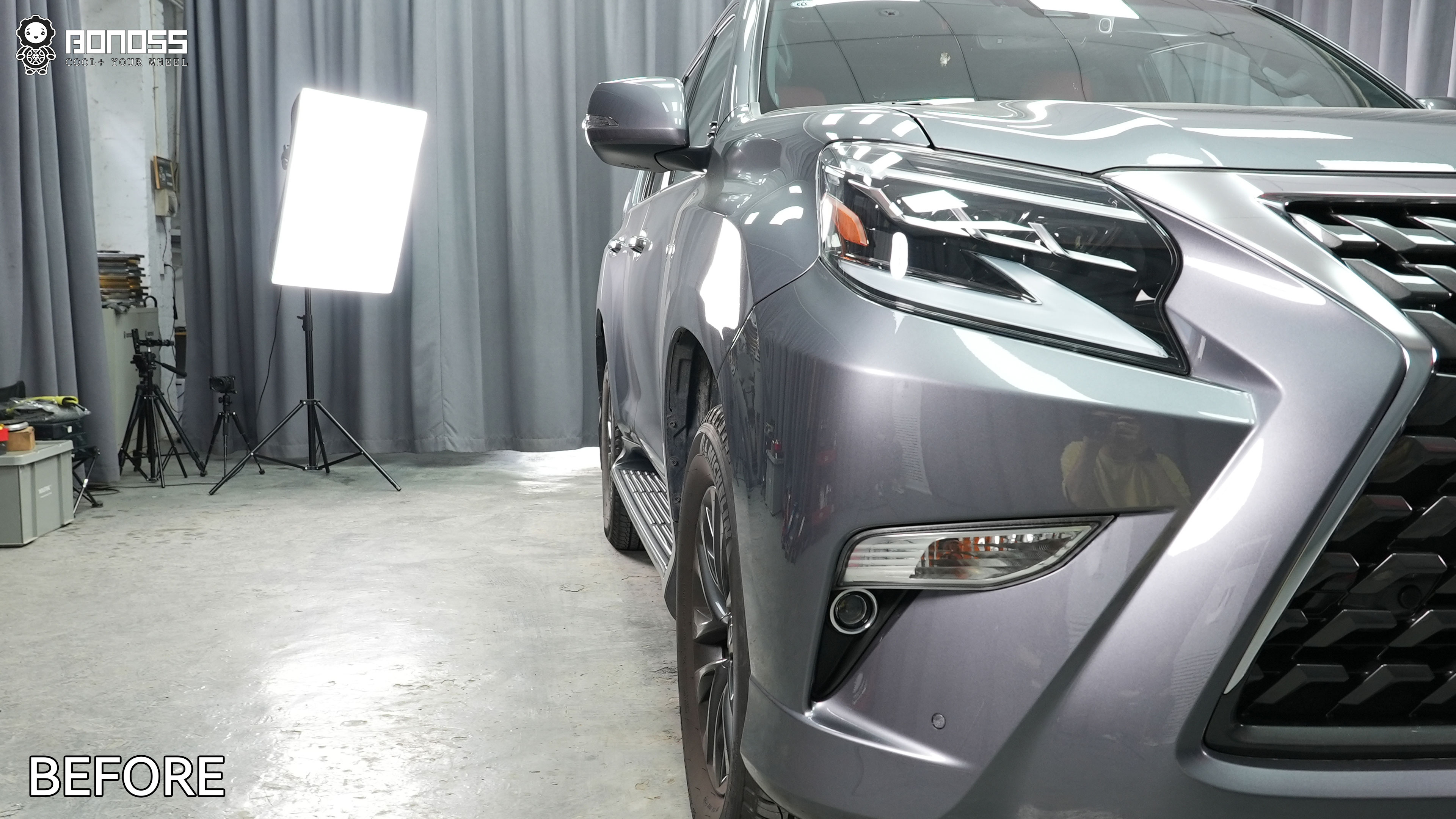

The before-and-after on the wheels tells the story. Factory ET25 wheels sit tucked inside the fender arches — functional, sure, but visually conservative for a truck with the GX460’s stance potential. Drop the offset to ET0 with 25mm spacers and the wheel fills the arch. Not flush-and-poking. Flush-and-clean.

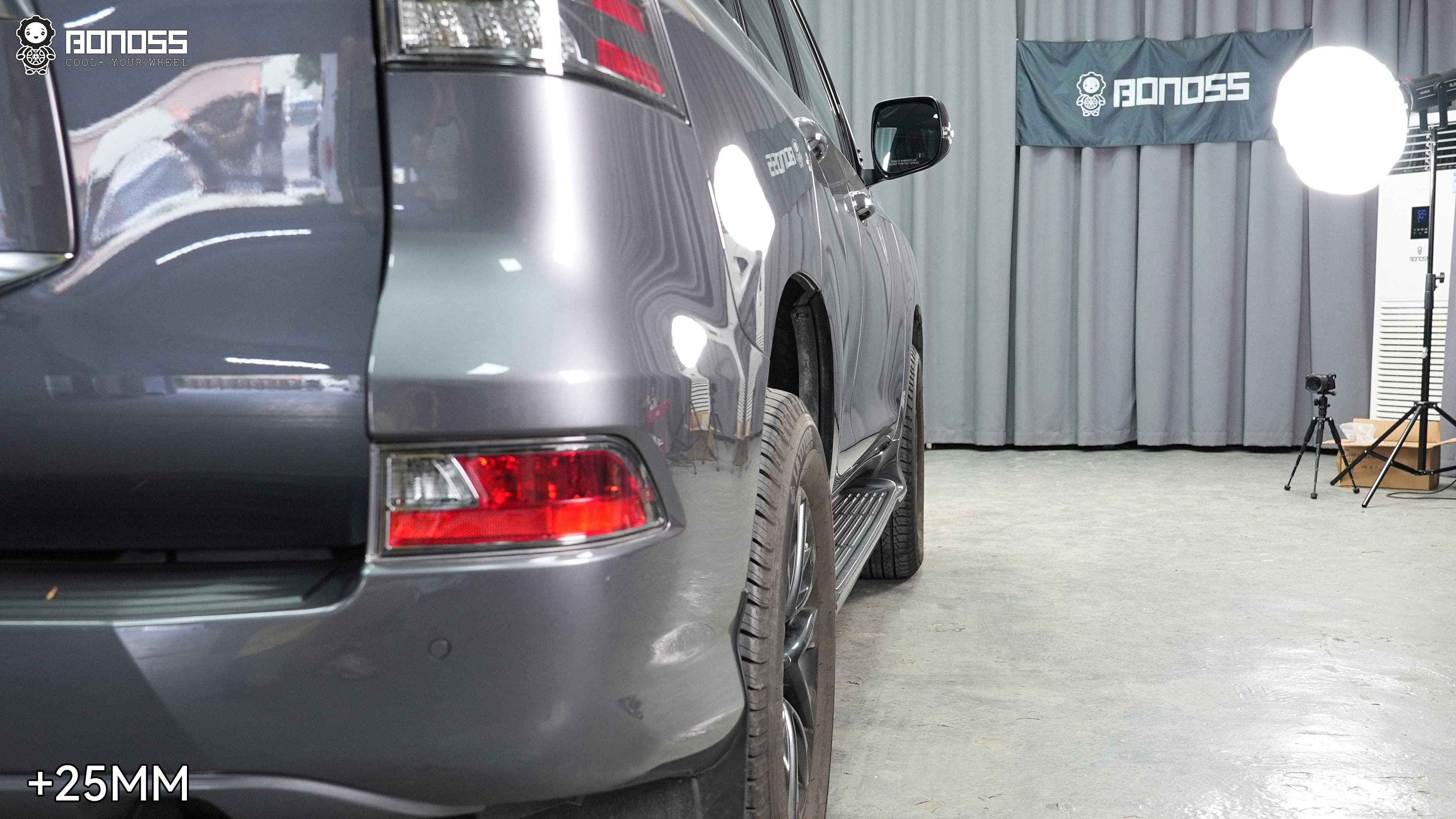

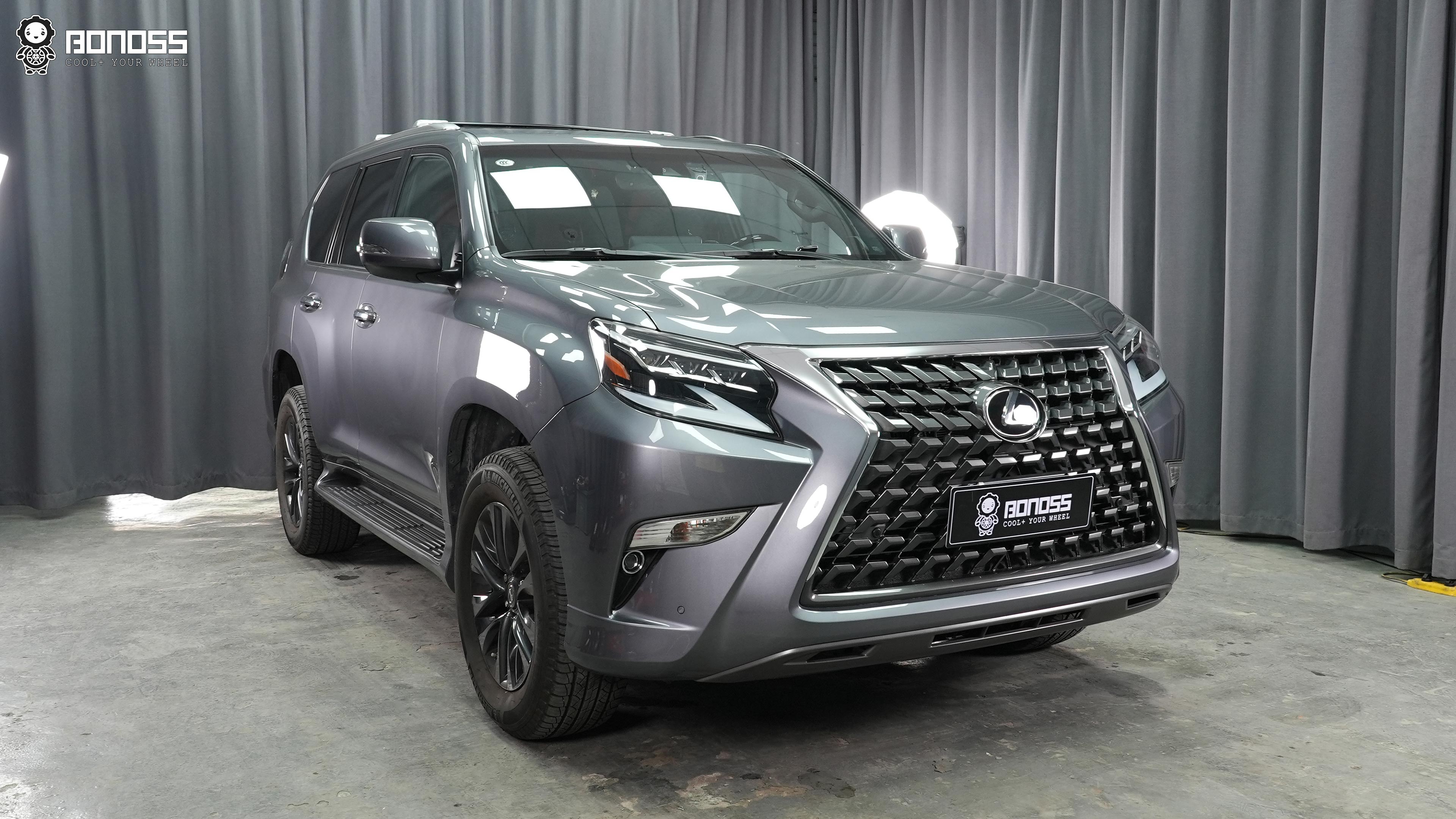

The visual change is obvious in the photos. But the functional change matters too, and it is not just about looks. Lexus GX460 25mm spacers delivered exactly what the fender measurements promised — a flush, squared-off stance that transforms how the truck looks and handles. For the Lexus GX J150 25mm wheel spacers application specifically, the 25mm-per-side shift from ET25 to ET0 is the sweet spot: enough to fill the arch, not enough to cause clearance problems.

A 50mm total track width increase widens the contact patch stance. That translates to reduced body roll in corners and improved straight-line stability — particularly at highway speeds and when the truck is loaded or towing. The steering feel becomes marginally heavier but more planted. None of this is dramatic; it is subtle in the way that good engineering is subtle — you notice it when you go back to a stock-track truck and it feels slightly twitchy by comparison.

What about the ET change from ET25 to ET0?

Offset measures the distance from the wheel’s mounting surface to its centerline. ET25 means the mounting surface sits 25mm outboard of center, tucking the wheel inward. Shifting to ET0 moves the mounting surface to the wheel’s centerline, pushing the entire wheel 25mm outboard per side. The result: the wheel sits flush with the fender, the track width increases by 50mm total, and the contact patch moves outward relative to the steering axis. On a stock-height GX460 with 265/60R18 tires, ET0 does not cause rubbing at full lock or under suspension compression. The Lexus GX 25mm spacers before and after difference is measurable in both stance and handling — not just in appearance.

What did the installation cost?

Four BONOSS 25mm forged 6061-T6 spacers: $299.98. Labor: $20. Total: $319.98. A set of aftermarket wheels with the correct offset to achieve the same flush look would run well into four figures. Rick’s point about price is valid — the math favors spacers by a wide margin, and you keep the factory wheels you already paid for.

FAQ

What bolt pattern do I need for 2020 Lexus GX 25mm spacers?

You need 6×139.7mm — the same pattern every J150 GX460 uses. The BONOSS spacers are drilled to this PCD with a 106mm center bore to match the factory wheel hub. Thread pitch is M12×1.5. The BONOSS hardware uses ISO Grade 12.9 wheel studs with ISO Grade 10 lug nuts featuring a full-cone seat. For owners cross-shopping platforms, GX460 hubcentric spacers 6×139.7 may not be interchangeable with 4Runner or Tacoma hubs without verifying the center bore — the bolt pattern is shared, but the hub diameter may differ.

Do GX460 wheel spacers fit the Toyota 4Runner and Tacoma?

The bolt pattern is shared — 6×139.7mm — if the center bore is also 106.1mm. They will seat correctly on those platforms. Always verify the center bore and hub pilot diameter for your specific vehicle before ordering. The J150 wheel spacers 25mm configuration is engineered for the GX460’s dimensions, not for every truck that happens to share a PCD.

Why are my measured center bore values different across the axle, wheel, and spacer?

They measure different mating surfaces. The axle hub outer diameter is 105.98mm. The wheel center bore is 106.1mm — 0.12mm larger, because Lexus leaves assembly clearance and anti-corrosion margin at the factory. The BONOSS spacer measures 106mm on the wheel-side pilot, creating a 0.1mm diameter clearance (0.05mm per side) with the wheel. The spacer’s axle-side bore uses a multi-stage step to match the 105.98mm hub.

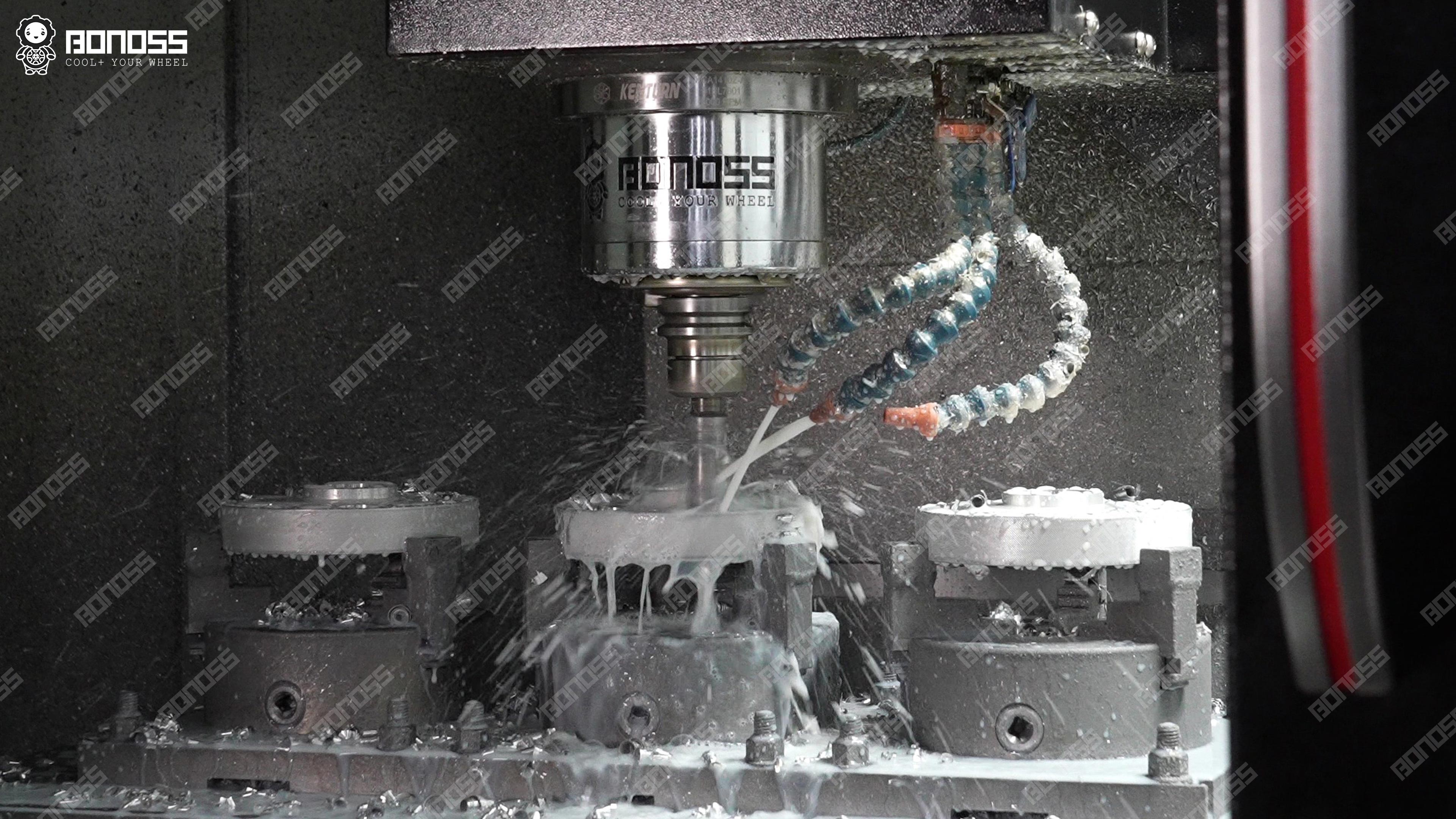

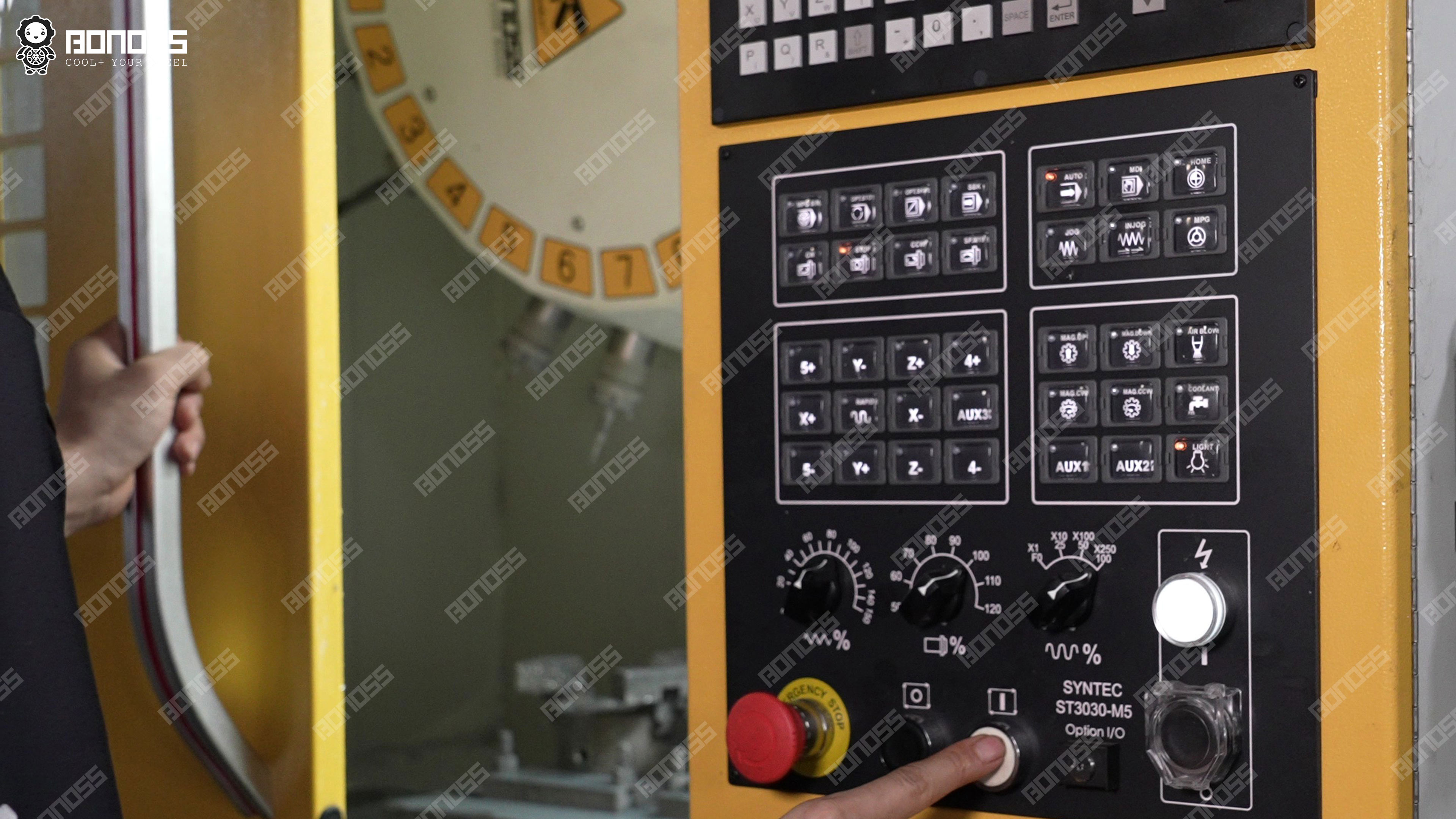

Each surface is machined to its own tolerance — that is why BONOSS uses 0.02mm CNC precision: to keep all three mating surfaces concentric and eliminate high-speed vibration. This is also why the 2020 GX460 25mm spacers 6×139.7 106.1mm specification requires a manufacturer that understands three-surface matching, not just one.

Can I go off-roading with GX460 wheel spacers?

Rick’s truck has covered 30,000 miles of mixed driving including off-road use. Lexus GX 25mm spacers for off-roading have proven durable under that load — the forged 6061-T6 construction handles the forces a stock-height GX460 generates on rough terrain, and a 25mm spacer does not create clearance issues under suspension compression.

If your truck is lifted, verify that the 25mm track width increase per side does not push the tire past the fender at full stuff. For lifted applications, wheel spacers for lifted GX460 configurations may require a different thickness calculation.

How often should I re-torque wheel spacers on a Lexus GX?

Check torque after the first 50–100 miles of driving post-installation, then at every tire rotation or oil change interval. Rick’s set has held torque through 30,000 miles with no re-torque events beyond the initial check — but that is one data point, not a universal rule. Thread locker is not required with BONOSS hardware, but some installers use a medium-strength thread locker as insurance. If you do, be aware it will increase the breakaway torque on future removal.

Are wheel spacers worth it for a 2020 Lexus GX?

If you want a flush stance without buying new wheels, yes. Rick paid $319.98 total. A new set of wheels with the correct offset would cost ten times that. The BONOSS spacers carry a 10-year warranty and over 75 SGS and TÜV test reports. The best 25mm wheel spacers for 2020 Lexus GX460 are the ones that fit your hub, match your PCD, and have the test data to back the material claims — and Rick’s 30,000-mile record is the proof.

Conclusion

Rick Wilson’s 2020 Lexus GX460 proves the point: 2020 Lexus GX 25mm wheel spacers, done right, are not a compromise. They are a legitimate alternative to buying new wheels — and in Rick’s case, the better one. Four BONOSS forged 6061-T6 spacers cost $299.98. Labor was $20. Total: $319.98. A set of aftermarket wheels with the correct offset to achieve the same flush stance would run well into four figures. Same look. Same functional benefit. Fraction of the cost. And Rick kept the factory wheels he already paid for.

The numbers that matter: 25mm per side for flush fitment (measured, not guessed). 20.62mm stud protrusion means no trimming. 113 Nm for the spacer-to-hub step. 103 Nm for the wheel-to-spacer step. TÜV-certified hardness of 101–103 (ISO 6506-1:2014). 240-hour salt spray with zero defects (ISO 9227:2022+Amd 1:2024). CNC machined to 0.02mm tolerance. ISO Grade 12.9 studs. Multi-stage hub-centric. Active cooling grooves. Ten-year warranty. And 30,000 miles of real-world proof — no vibrations, no rubbing, nothing wrong at all.

If you are ready, 2020 Lexus GX 25mm spacers for sale at the best price are available direct from BONOSS. Same parts Rick is running. Same warranty. Same engineering. Shop the product page and get the flush stance your GX460 was designed for.
