If you need new 2000-2025 Hyundai Santa Fe lug nuts, there are five main components to help you figure out the correct set:
- Thread Pitch
- Socket Size
- Torque Spec
- Seat Type
The most common thread sizes of lug nuts on a Hyundai Santa Fe SM/ CM/ DM/ NC/ TM/ MX5 will be M12x1.5mm. You can easily find out the best sizes by using the below chart:
Hyundai Santa Fe Lug Nut Size Chart
| Model | Thread Pitch | Hex Size | Seat Type | Torque Spec | Lug Pattern |
|---|---|---|---|---|---|
| ’00-’06 Santa Fe I (SM) | M12x1.5mm | 21mm (13/16”) | Flat seat | 108 Nm (80 ft-lb) | 5×114.3mm |
| ’07-’12 Santa Fe II (CM) | M12x1.5mm | 21mm (13/16”) | Flat seat | 108 Nm (80 ft-lb) | 5×114.3mm |
| ’13-’18 Santa Fe III (DM/NC) | M12x1.5mm | 21mm (13/16”) | Flat seat | 108 Nm (80 ft-lb) | 5×114.3mm |
| ’19-’23 Santa Fe IV (TM) | M12x1.5mm | 21mm (13/16”) | Flat seat | 108 Nm (80 ft-lb) | 5×114.3mm |
| ’24 & Newer Santa Fe V (MX5) | M12x1.5mm | 21mm (13/16″) | Flat seat | 108 Nm (80 ft-lb) | 5×114.3mm |
What is the Hyundai Santa Fe Lug Nut Socket Size?
The most common socket size of a Hyundai Santa Fe lug nut is 21mm (13/16”). Most stock Hyundai lug nuts are Hex types. Everyone can install or remove the hex lug nuts with correct sockets or wrenches. You already invested in the car, so why not get some wheel locks to protect the wheels? These inexpensive Santa Fe wheel locks are a good idea to keep the wheel thieves away.

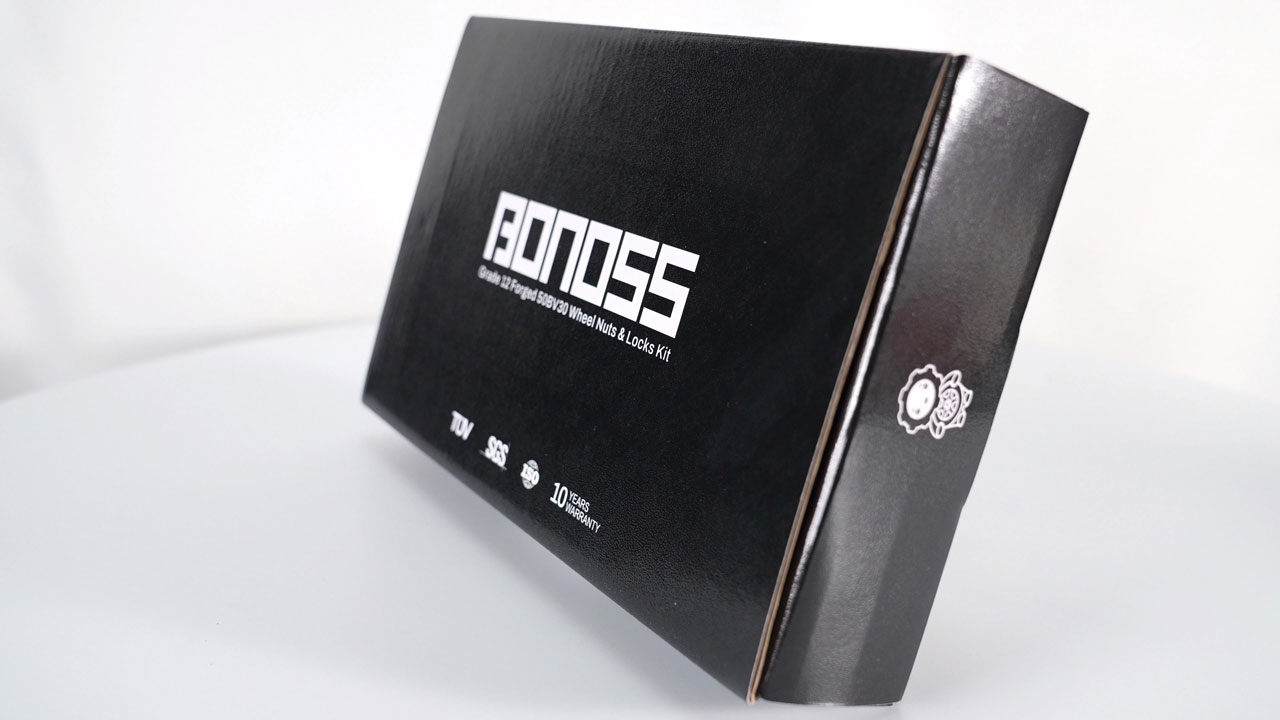

The BONOSS forged 50BV30 steel Hyundai wheel lock & nut kit is engineered to protect your vehicle! Each kit comes with 20 pcs of standard Hex lug nuts and 4 pcs of special heptagon wheel locks. A set has a special 7-side shape key lug-nut adaptor that is attached to any lug wrench. The advanced special surface treatment improves the scratch resistance ability. These BONOSS forged 50BV30 steel lug nuts give neutral salt spray resistances exceeding 500 hours.
How Much Torque Do You Need for Hyundai Santa Fe Lug Nuts?
The 2000-2025 Hyundai Santa Fe wheel nut torque spec is 108 Nm (80 ft-lbs). If you intend to install a wheel, it is important to know the manufacturer recommended torque settings. Because wheel lug nuts are designed to fasten your wheels with a clamping force. When correctly torqued, they will make a strong mechanical connection to the threads on the vehicle hub. Using the proper torque helps ensure that the wheel assembly is securely installed.
Generally, higher-strength Santa Fe lug nuts provide higher performance. For example, BONOSS forged 50BV30 steel lug nuts are ISO grade 12. The forging process eliminates the porosity, ensuring structural integrity. So, these BONOSS forged 50BV30 steel wheel nuts have a proof load of over 105,700 N. High-quality steel wheel nuts are significantly stronger and more durable. This means even in hard driving, they can keep in very good condition.
What Types of Hyundai Santa Fe Lug Nuts Do I Need?
It is recommended to pick up some new Hyundai Santa Fe lug nuts to go with new aftermarket wheels. Because your stock lug nuts will most likely NOT work with the new wheels, so it is important to get some good quality aftermarket lug nuts! BONOSS forged 50BV30 steel Hyundai Santa Fe wheel nuts are a good idea to fit different aftermarket wheels (conical lug seat) like BBS wheels, RAYS wheels, HRE wheels, and more.
Due to actual measurement and vehicle-specific design, each BONOSS forged ISO grade 12 Hyundai Santa Fe wheel lug nut is made according to your vehicle’s specifications. They are also SGS TÜV-certified. BONOSS never compromises on quality. Besides, genuine BONOSS forged 50BV30 Hyundai Santa Fe wheel nuts are covered by a 10-year warranty. They make it worth every penny you spend.
