If you want to give your GX550 the ultimate style and performance upgrade, adding a proper set of Lexus GX550 spacers may just be the way to go. Most stock Lexus GX wheel spacers range in size from 1 inch to 2 inches. Getting the wrong wheel spacers can cause improper installation. To avoid this issue, learn the factors of the best Lexus GX550 spacers for your off-roading vehicle. The most important factor is the wheel bolt pattern.
2002-2025 Lexus GX Wheel Bolt Pattern Spacer Lug Nut Size Chart
| Model | PCD | CB | Thread Size | OEM Socket Size | Torque Spec | Flush Size | Price (Set of 4) |
|---|---|---|---|---|---|---|---|
| ’02-’09 GX J120 | 6×139.7mm | 106mm | M12x1.5mm | 21mm (13/16”) | 103 Nm (76 ft-lb) | Front 25mm Rear 30mm | $300 to $490 |
| ’10-’23 GX J150 | 6×139.7mm | 106mm | M12x1.5mm | 21mm (13/16”) | 103 Nm (76 ft-lb) | Front 25mm Rear 30mm | $300 to $490 |
| ’24-’25 GX J250 | 6×139.7mm | 95.1mm | M14x1.5mm | 21mm (13/16”) | 140 Nm (103.5 ft-lb) | Front 25mm Rear 30mm | $300 to $490 |
In short, the best wheel spacers for a 2025 Lexus GX550 (J250) are 6×139.7mm bolt pattern (PCD), 95.1mm center bore (CB), M14x1.5mm lug nut size, 25mm to 30mm thickness, hub-centric types, and forged 7075-T6 aluminum alloy material. Since the factory 2025 Lexus GX550 car has a big amount of space from the tire to wheel well liners, you can go a little thicker wheel spacers to create a more aggressive and rugged look.
What is the Wheel Bolt Pattern on a 2025 Lexus GX550 Spacer?
The 2024-2025 Lexus GX550 Premium/ Luxury/ Overtrail+ comes with a 6×139.7mm bolt pattern. To ensure a safe fit, the spacer bolt pattern must be the same as the vehicle lug pattern. However, not everyone is a tire expert. Suppose you have picked up a set of aftermarket wheels with a different bolt pattern, proper wheel adapters will allow you to use those wheels. For example, the 6×139.7 to 6×135 wheel adapters allow you to put 6×135 aftermarket wheels on a Lexus GX550 with no problem.

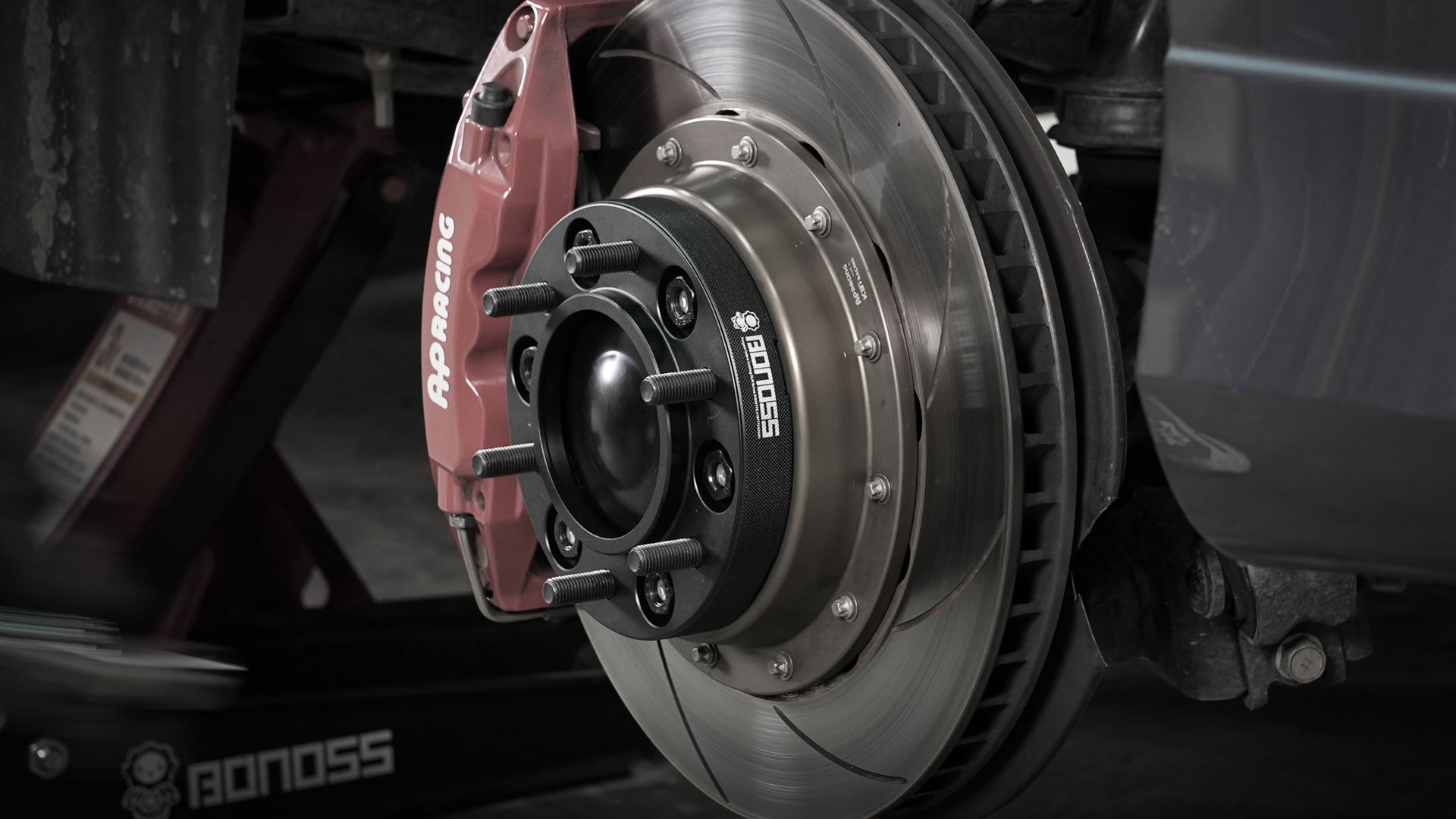

Engage a better adventure experience and more off-roading wheel selection with BONOSS forged active cooling Lexus GX550 spacers. These BONOSS forged wheel spacers come with an active cooling function. There are heat dissipation grooves craved behind the spacers. When rotating, those grooves allow the external cold air to flow continuously inside the wheel spacer. The air takes away the heat, so these BONOSS forged active cooling Lexus GX550 spacers are helpful to actively dissipate heat for the braking system and improve road safety.
What is the Torque Spec on Lexus GX550 Spacers?
The REFERENCE torque spec of 2024-2025 Lexus GX550 spacers would be 140 Nm or 103.5 Ft-lb. Since some wheels or applications require more or less tightening torque, it’s best to consult a tire expert to find out the exact torque spec before operating. Set a good torque wrench to the correct value. Then, tighten each wheel nut a quarter turn at a time following the crisscross sequence (in a “star” pattern). This ensures that the Lexus GX550 lug nuts are forced evenly.

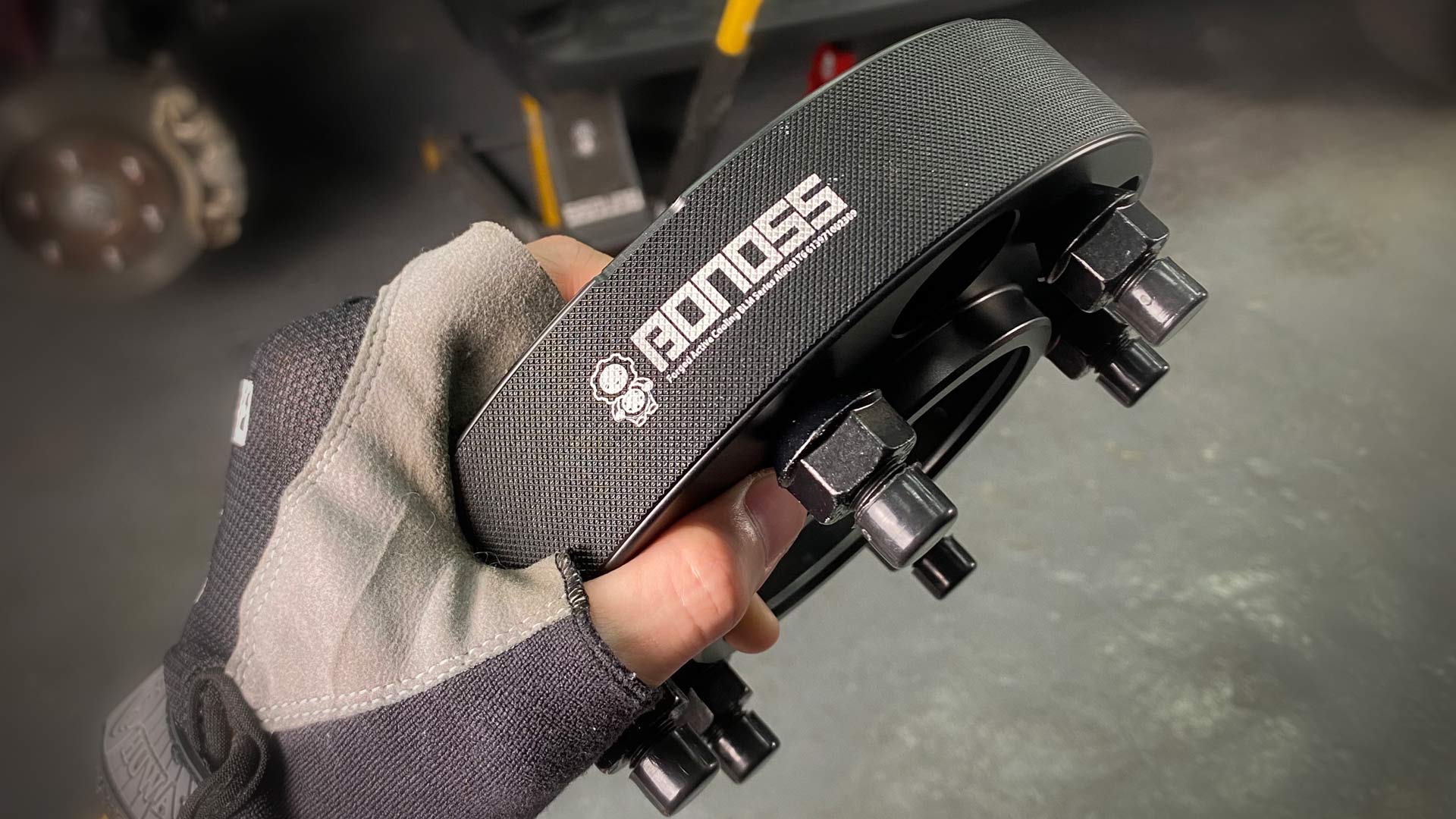

For those who pursue safety and performance, forged is top of the line. If you plan to upgrade your wheel style, forged aluminum wheel spacers are an excellent choice. BONOSS wheel spacers are made of forged 6061-T6 and 7075-T6 aluminum alloy. The tensile strength is up to 572 MPa and the yield strength is up to 503 MPa (AL7075-T6). From lightweight, and durable to high-strength, these BONOSS forged active cooling 2025 Lexus GX550 spacers are your best wheel spacer option.
What Offset Does a Lexus GX550 Spacer Have?
As a rule of thumb, a 1-inch Lexus GX550 spacer is about -25.4mm offset. The lower the offset value, the farther the wheels will sit outside. For example, a wheel with a 1-inch spacer will stick outside more than a wheel with no spacer. Brand-new Lexus GX550 spacers can range in cost from $149.99 to $299.99+, depending on the spacer size and material you select. They are no different than some offset rims but the price is much lower.

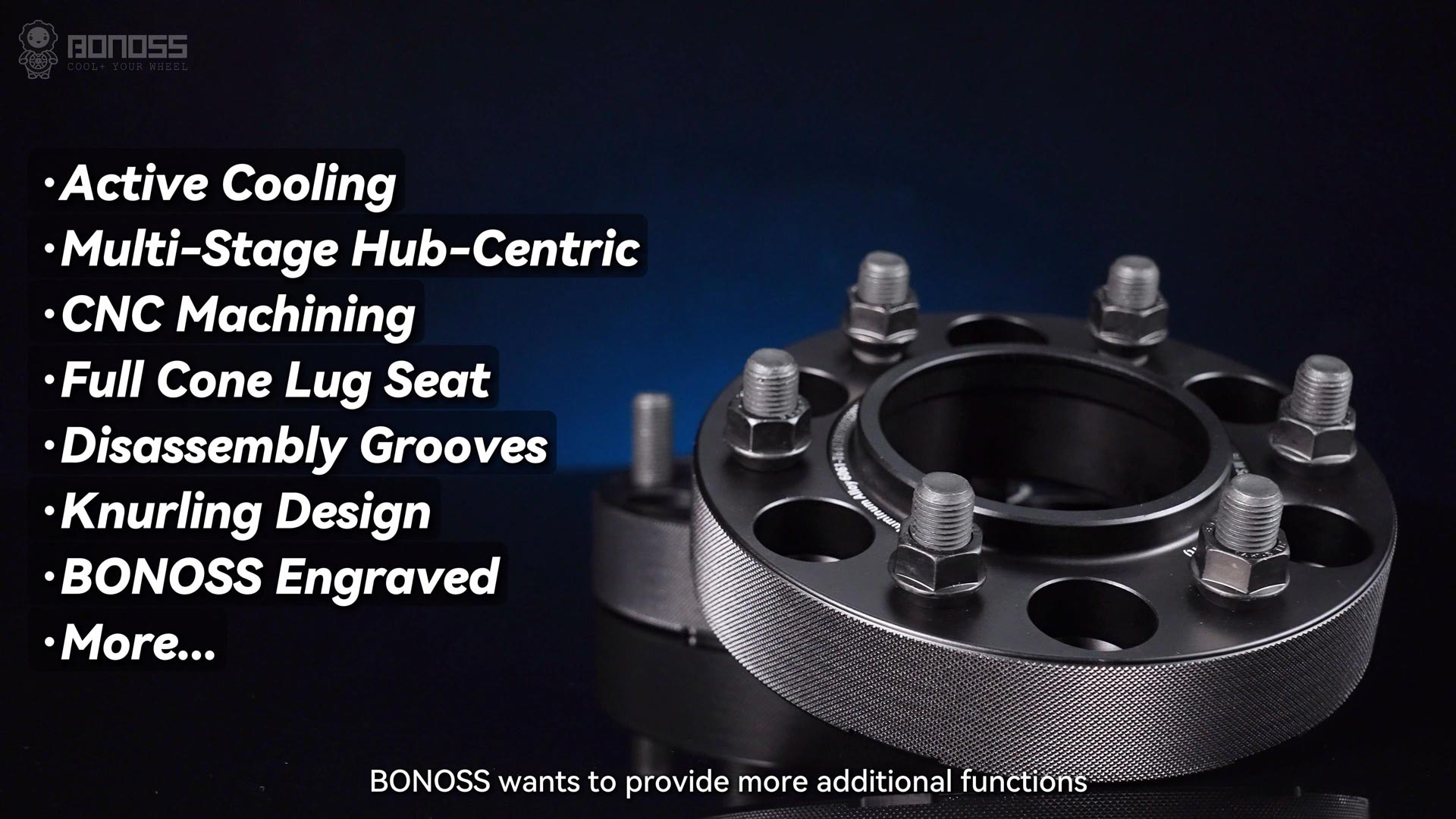

Cruise the city or adventure off-road with BONOSS forged active cooling Lexus GX550 spacers. Thanks to the multi-stage hub-centric design, BONOSS wheel spacers can perfectly fit the specific wheel hub, eliminating any possible gaps. In this way, the wheel is centered by the hub connection and the lugs can hold it flush against the mounting plate. As long as you torque each lug nut properly, there won’t be wheel vibration issues.
No matter the size, material or finish you’re looking for, BONOSS has the best Lexus GX550 spacers you want. What’s better, BONOSS forged active cooling Lexus GX550 spacers provide a 10-year warranty. Mostly, the longer the warranty, the better. Whether you’re getting ready for an enjoyable adventure or a daily commute, these BONOSS forged active cooling Lexus GX550 wheel spacers will be a perfect option.
AL6061-T6 types (for daily driving)
AL7075-T6 types (for hard off-roading)
Forged 50BV30 steel lug nuts
