In quick summary, the most common size and torque spec of the Toyota GR Corolla lug nuts are M12x1.5mm thread size, 21mm socket size, and 103 Nm (76 ft-lb). Since the bolt pattern of a 2022-2025 Toyota GR Corolla is 5×114.3mm or 5×4.5”, so there are 20 pcs lug nuts to fasten the wheels. If you need new GR Corolla lug nuts, the below buyer guide may help.
Toyota GR Corolla Lug Nuts Torque Spec Size Chart:
| Model | Thread Pitch | Socket Size | Seat Type | Torque Spec | Lug Pattern |
|---|---|---|---|---|---|
| ’22-’24 GR Corolla | M12x1.5mm | 21mm (13/16”) | Flat seat with a washer | 103 Nm (76 ft-lb) | 5×114.3mm |
| 2025+ GR Corolla | M12x1.5mm | 21mm (13/16”) | Flat seat with a washer | 103 Nm (76 ft-lb) | 5×114.3mm |
What is the Torque on the Toyota GR Corolla Lug Nuts?
The REFERENCE torque spec for Toyota GR Corolla lug nuts is 103 Nm (76 ft-lb). Properly torquing the lug nuts is critical to ensuring wheel assembly rides smoothly, forces evenly, and performs as expected. It is a good idea to consult a tire professional because some wheels may need different tightening torque. To torque the Toyota GR Corolla lug nuts well, it is highly recommended to use a torque wrench instead of an impact wrench.
What Size are the Lug Nuts on a Toyota Corolla GR?
The size of the lug nuts on a Toyota GR Corolla Core/ Circuit Edition/ Morizo Edition is M12x1.5mm. Although there are thousands of GR Corolla wheel lug nuts that exist on the market, the option is narrow. Only if the thread pitches and seat types are correct can you install these Toyota lug nuts safely.
What Size Socket is Toyota GR Corolla Lug Nuts?
The socket size of Toyota GR Corolla lug nuts is 21mm (13/16”).
What is the Pitch of the GR Corolla Lug Nuts?
The Toyota GR Corolla lug nuts use 1.5mm thread pitches. The sizes of the wheel nuts required will depend on the wheel studs your vehicle has. Simply, the correct stud thread pitch could be found in the owner’s manual. But most Toyota GR Corolla lug nuts are M12x1.5mm in size.
Where is the Toyota GR Corolla Wheel Lock Key?

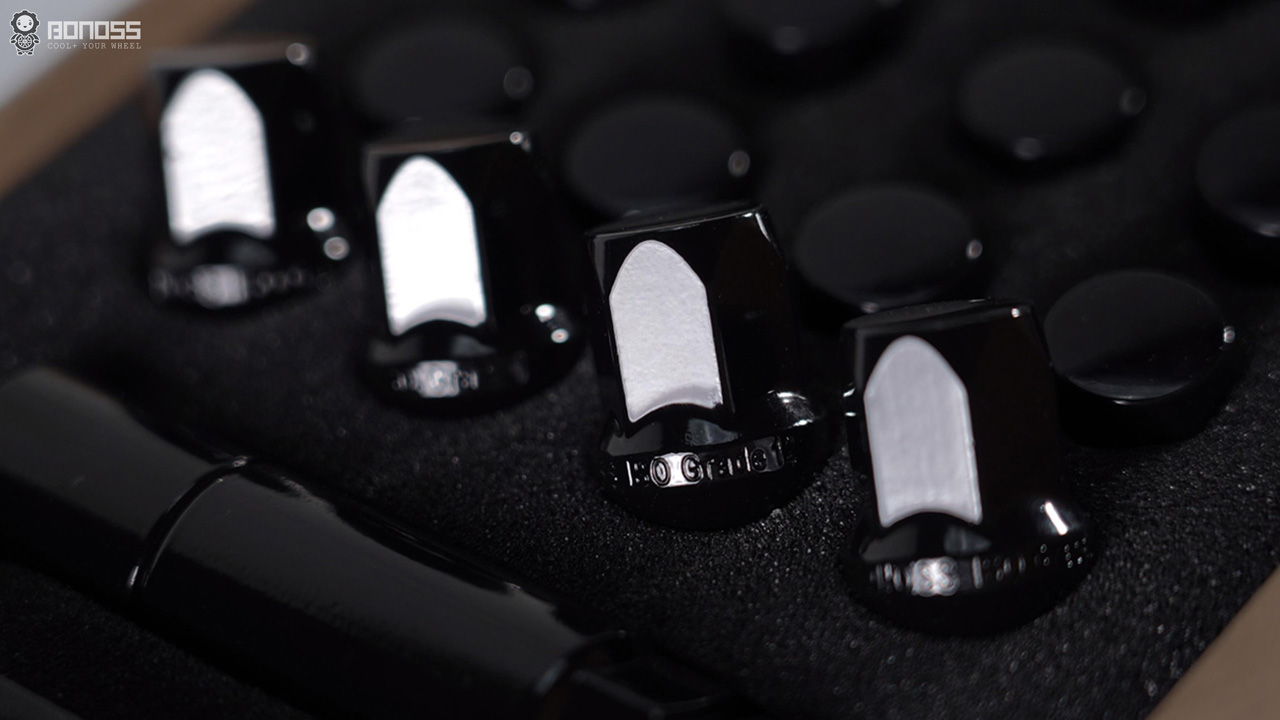

If your Toyota GR Corolla car comes with OEM wheel locks, then you may find a special key in the glove compartment, center console storage, storage box, or trunk. What’s better, a BONOSS forged 50BV30 steel wheel lock & nut kit includes 20 pcs standard wheel nuts and 4 pcs Heptagon wheel locks. Due to the irregular shape, it is difficult for wheel thieves to remove these wheel locks. This is good for protecting your finest wheels.
What Bolt Pattern is 2022-2025 GR Corolla?
The lug bolt pattern of a 2022-2025 Toyota GR Corolla is 5×114.3mm. BONOSS forged wheel adapters allow you to convert 5×114.3 GR Corolla to the 5×100 bolt pattern for more wheel choices. In this case, you can fit 5×100 wheels onto your 5×114.3 GR Corolla easily and quickly.
What Types are Toyota GR Corolla Lug Nuts?
The types of Toyota GR Corolla lug nuts are steel lug nuts with flat seats. BONOSS provides three types of Toyota lug nuts: steel, aluminum, and titanium lug nuts. Many racing vehicles will use Titanium wheel nuts for strength and lightweight. Each BONOSS Titanium lug nut weighs about 34g, and a set of BONOSS forged Titanium Toyota GR Corolla lug nuts weigh about 680g. You can invest in a new wheel nut kit for entirely aesthetic purposes or performance upgrades.
What Size Lug Nuts are on a Toyota Corolla Big Body?
The size of the lug nuts on a Toyota Corolla Big Body is M12x1.5mm.
What Size Thread is a Toyota Corolla Wheel Stud?
The thread size of a Toyota Corolla wheel stud is M12x1.5mm. If you add 10mm wheel spacers, you need longer wheel studs. Only if the stud thread is long enough can the studs provide proper clamping force to keep these 10mm wheel spacers and wheels balanced.
