We know what 2025 Honda Civic Type-R wheel spacers work best on your FL5. In this guide, we will list all the information you will need to find the wheel spacers and lug nuts that fit your sports car best. To find the best 2025 Honda Civic Type-R wheel spacers, just check the below wheel spacer fitment guide.
Use this 2025 Honda Civic Type-R wheel spacer configuration reference found further down on this article to find what bolt pattern, wheel spacer sizes, and offsets will work with your Civic Type-R FL5.
Honda Civic Type R Wheel Spacer & Lug Nut Size Chart
| Model | PCD | CB | Thread | OEM Offset | OEM Wheels Flush Spacer Size Range |
|---|---|---|---|---|---|
| ’97-’01 Civic Type-R EK9 | 5×114.3mm | 64.1mm | M12x1.5mm | +45 | 15mm to 20mm |
| ’02-’05 Civic Type-R EP3 | 5×114.3mm | 64.1mm | M12x1.5mm | +42 to +45 | 15mm to 20mm |
| ’06-’12 Civic Type-R FN | 5×114.3mm | 64.1mm | M12x1.5mm | +55 to +60 | 15mm to 25mm |
| ’07-’10 Civic Type-R FD | 5×114.3mm | 64.1mm | M12x1.5mm | +55 to +60 | 15mm to 25mm |
| ’15-’17 Civic Type-R FK2 | 5x120mm | 64.1mm | M14x1.5mm | +50 to +60 | 15mm to 25mm |
| ’18-’22 Civic Type-R FK8 | 5x120mm | 64.1mm | M14x1.5mm | +55 to +60 | 15mm to 25mm |
| ’23 & Newer Civic Type-R FL5 | 5x120mm | 64.1mm | M14x1.5mm | +60 | 15mm to 20mm |
The new Civic Type-R FL5 wheel spacers must be the same bolt pattern as the original factory wheel hubs, but you can choose different sizes. In general, you can go wheel spacers that is more than 5mm thicker to achieve an aggressive wheel style.
Will 5×120 Spacers Fit 5×114.3 Wheels?
The PCD of a 2025 Honda Civic Type-R FL5 is 5x120mm. If you use a wheel adapter, you can put 5×114.3mm wheels on a 2025 Honda Civic Type-R FL5. Wheel adapters have been used for years. Numerous successful cases have proved that they are a safe tool to expand the wheel options. The 5×120 to 5×114.3 wheel adapters allow you to fit 5×114.3 wheels onto your 5×120 Honda Civic Type-R FL5.
The 2025 Honda Civic Type-R Wheel Spacers VS Offset Rims
Generally, the Civic Type-R wheel spacers are a better option when your budget is insufficient. If you like the stock wheels, then wheel spacers will be the most cost-effective ways to give your car a slightly more aggressive stance. There are lots of good quality hub-centric spacers out there that are plenty strong. As long as you install them properly, the Honda Civic Type-R wheel spacers are as safe as many negative offset wheels.

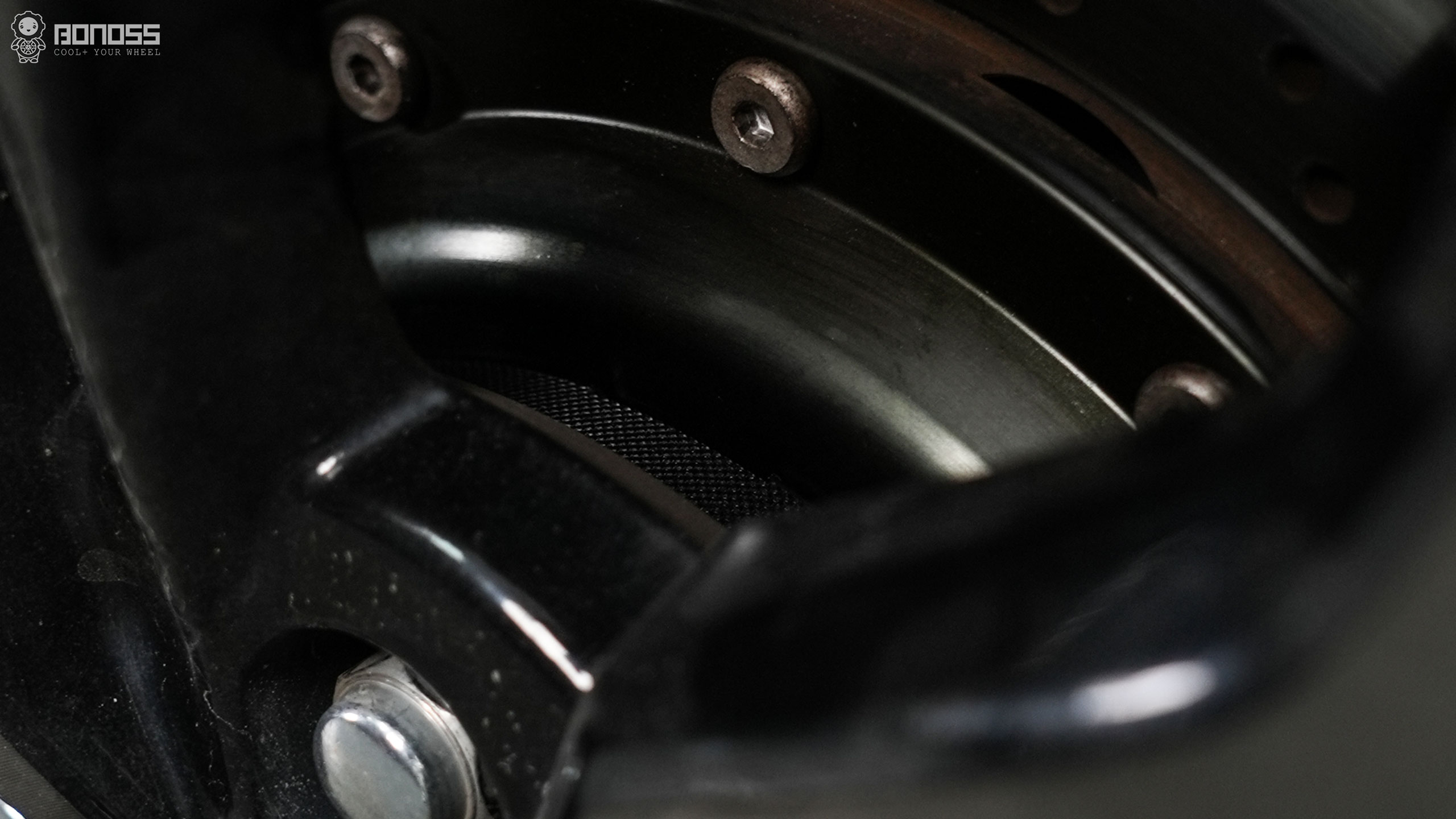

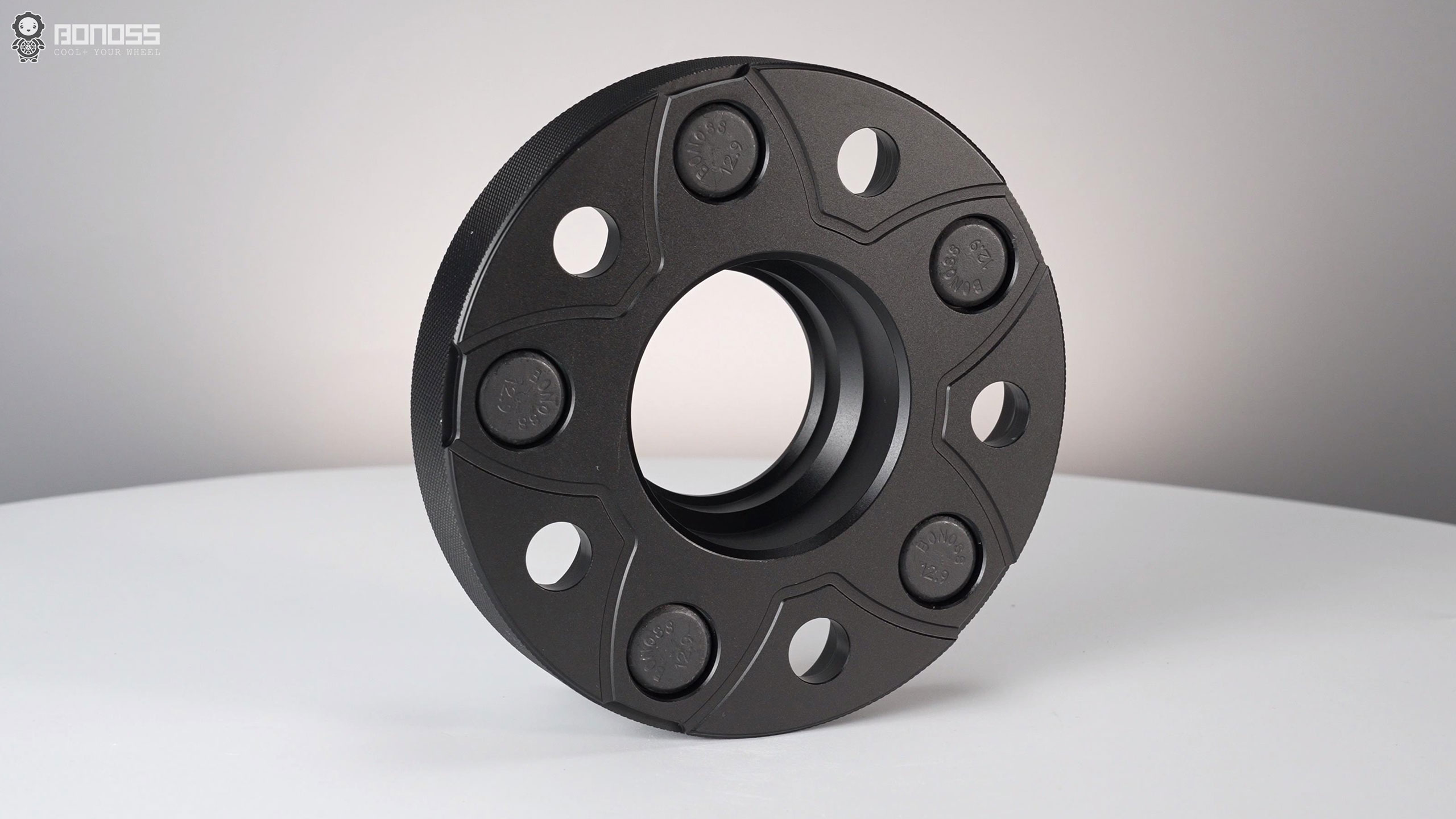

Besides, some famous brand wheel spacers come with more additional functions. With the same price as many other spacers, it would be even better if the spacers provide more functions. For example, BONOSS forged active cooling Honda Civic Type-R wheel spacers can improve brake cooling efficiency. There are heat dissipation grooves that send the external cold air to flow continuously inside the wheel spacer when it rotates. The air takes away the heat, so it achieves the purpose of actively dissipating heat for the braking system.
Should I Use Loctite for 2025 Honda Civic Type-R Wheel Spacers?
No, you don’t need to use Loctite for installing 2025 Honda Civic Type-R wheel spacers. But if the spacer manufacturer recommends using a thread locking compound, just choose the Blue one. Because the red one is permanent and the blue one will be fine for a certain period. Just be sure every stud or lug nut is clean and dry. Properly torqued and checked after running in, the spacer wheel nuts won’t easily loosen up.
Technically speaking, high-quality aluminum alloy wheel spacers don’t easily get rusty. What’s better, BONOSS forged active cooling Honda Civic Type-R wheel spacers have undergone a black hard coat anodizing process. The Anodizing provides the surface with better abrasion resistance, flame resistance, and smoother and harder finish protection than regular paint or metal plating. As long as you use a good torque wrench and tighten the wheel spacers to the correct specs, you don’t need any Loctite threadlocker.
What Size are the Wheel Nuts on a Honda Civic Type R FL5?

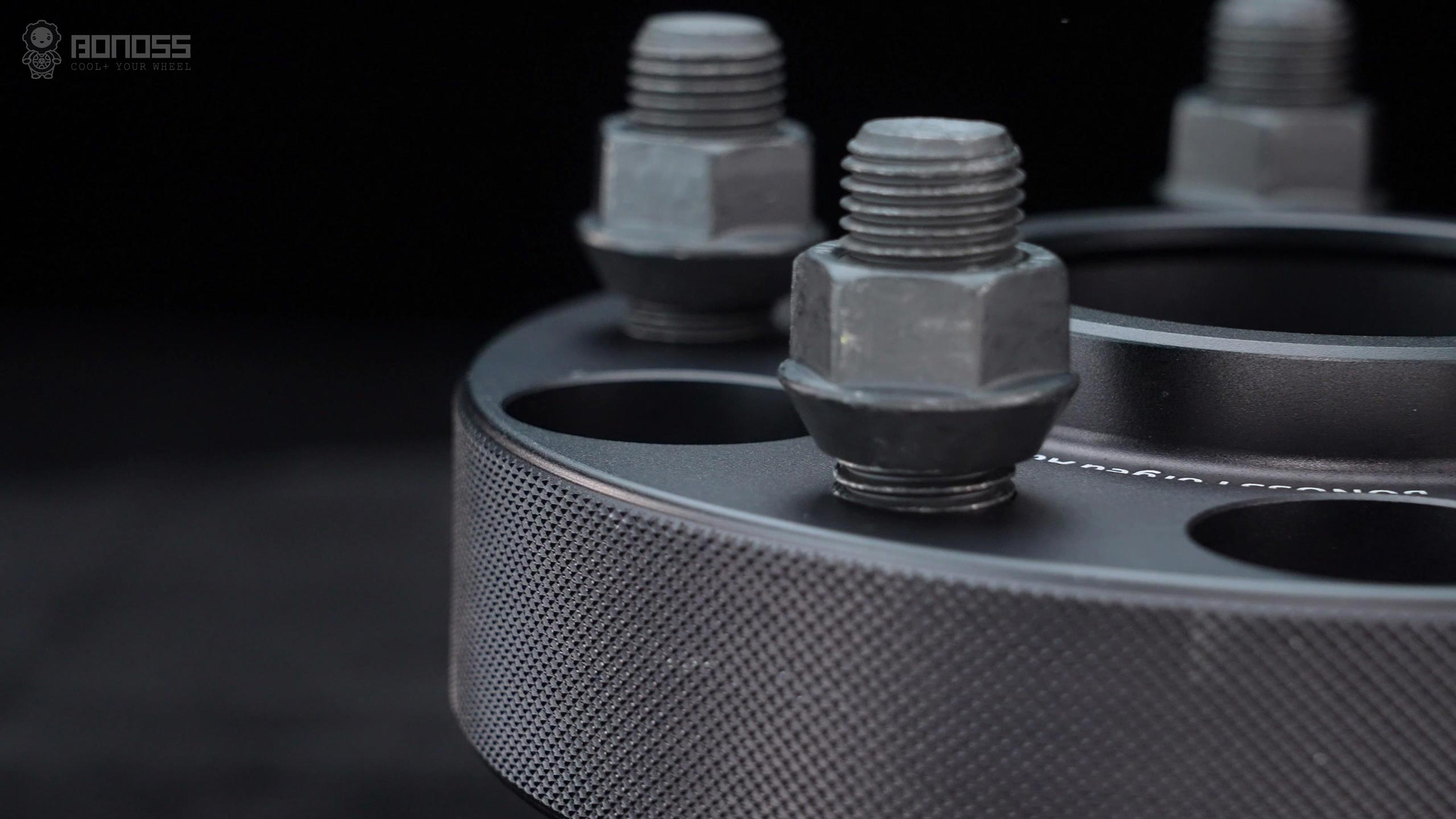

The most common sizes of the wheel nuts on a 2025 Honda Civic Type R FL5 are M14x1.5mm thread size, 13/16” hex, and a ball seat. It is a good idea to pick up some lug nuts to go with your new Honda Civic Type R wheel spacers. All BONOSS forged active cooling wheel spacer lug nuts are ISO grade 10 certificated to ensure the best wheel fitment. The proof load of these spacer lug nuts is over 1,100 MPa. Even facing impacts, these wheel fasteners are not easy to break.
If you change to new aftermarket wheels, your factory lug nuts will most likely NOT work. So, it is important that you get some good quality aftermarket lug nuts! To further improve the appearance and performance of your vehicle, BONOSS provides forged aluminum 7075-T6 Civic Type R lug nuts. These nuts come in a variety of colors, such as red, black, gold, silver, blue, grey, and more. Obviously, these wheel nuts will give your vehicle a fresh, eye-catching look.
