Having C5 Corvette hub centric wheel spacers installed provides a broader contact area. The tires are set further away from each other which allows for less vehicle roll in cornering, hence improving the driving experience. Hub-centric wheel spacers fit over the center bore of the wheel and over the hub pilot on the axle, filling up the space between the two surfaces.
Consequently, get proper C5 Corvette hub centric wheel spacers installed, and you’ll be fine in most driving conditions. However, before making any modifications, it’s crucial to understand the safety implications, especially on track days. In this article, we’ll explore what factors contribute to wheel spacer safety.
Top 5 Factors of the Best C5 Corvette Hub Centric Wheel Spacers
It’s essential to note that not all Chevrolet C5 Corvette hub centric wheel spacers are created equal, and safety depends on several key factors:
1. Bolt Pattern (PCD):
To ensure a safe fit, the spacer bolt pattern must be the same as the vehicle lug pattern. Double-check the vehicle bolt pattern in your owner’s manual before buying a set. For example, C5 Corvette (1997-2004): PCD=5×120.65mm, CB=70.3mm, Thread=M12x1.5mm.
2. Correct Offset:
Wheel spacers reduce the offset. Example: If your stock C5 Corvette hub centric wheel offset is +58mm, then a 20mm spacer will make the final offset +38mm.
3. Torque Specs:
The REFERENCE torque spec for wheel spacers on a C5 Corvette hub centric spacer is 83.3 ft-lbs (113 Nm). This is just a reference value. It’s best to check your vehicle’s manual or consult a professional to find out the exact specifications before operating.
4. Material:
Good wheel spacers for C5 Corvette are made of high-strength materials like forged 7075-T6 aluminum alloys. For racing cars, aluminum spacers provide a balance of strength and weight. They won’t break easily.
5. Hub-centric:
Hub-centric spacers can create a firm and stable wheel connection. If you often you’re your Corvette to the track, you will eventually need wheel spacers with integrated hub-centric rings to ensure safety.
Who Makes the Best Wheel Spacers for C5 Corvette?
Brand manufacturers focus on quality and performance. Before leaving the factory, BONOSS’s tech staff will do a series of inspections on the finished Corvette hub centric spacers to check for any defects. They measure the individual aspects of the spacers to make sure that they meet the design specifications. BONOSS offers several key advantages that make their spacers a top choice.
1. Active Cooling for Better Braking

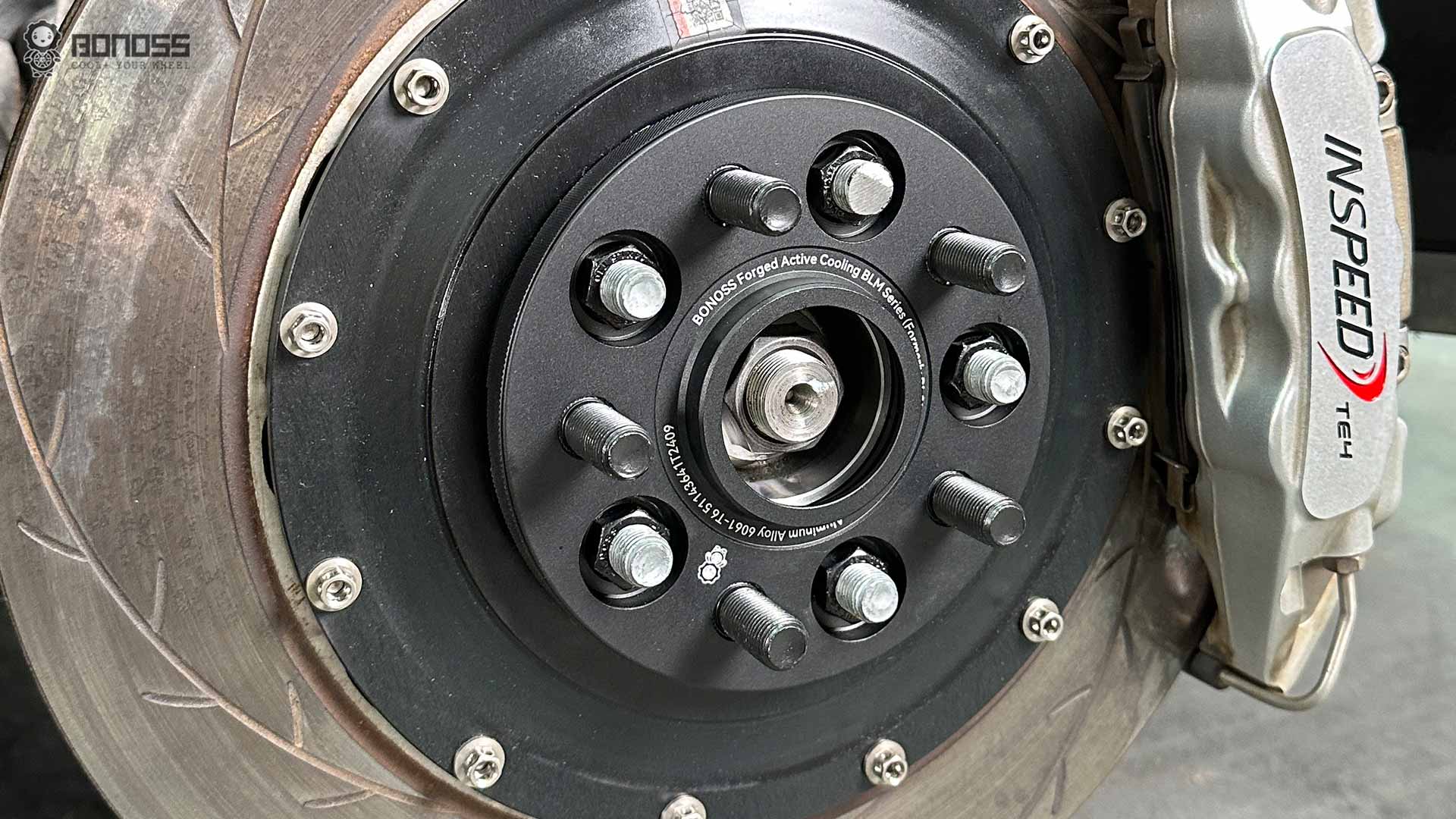

BONOSS forged active cooling C5 Corvette hub centric wheel spacers come with petal-shaped grooves. The grooves allow the external cold air to flow continuously inside the spacer when it rotates. The air takes away the heat, actively dissipating heat for the braking system. This is good for performance brakes.
2. Precise Hub-centric for Zero Vibration

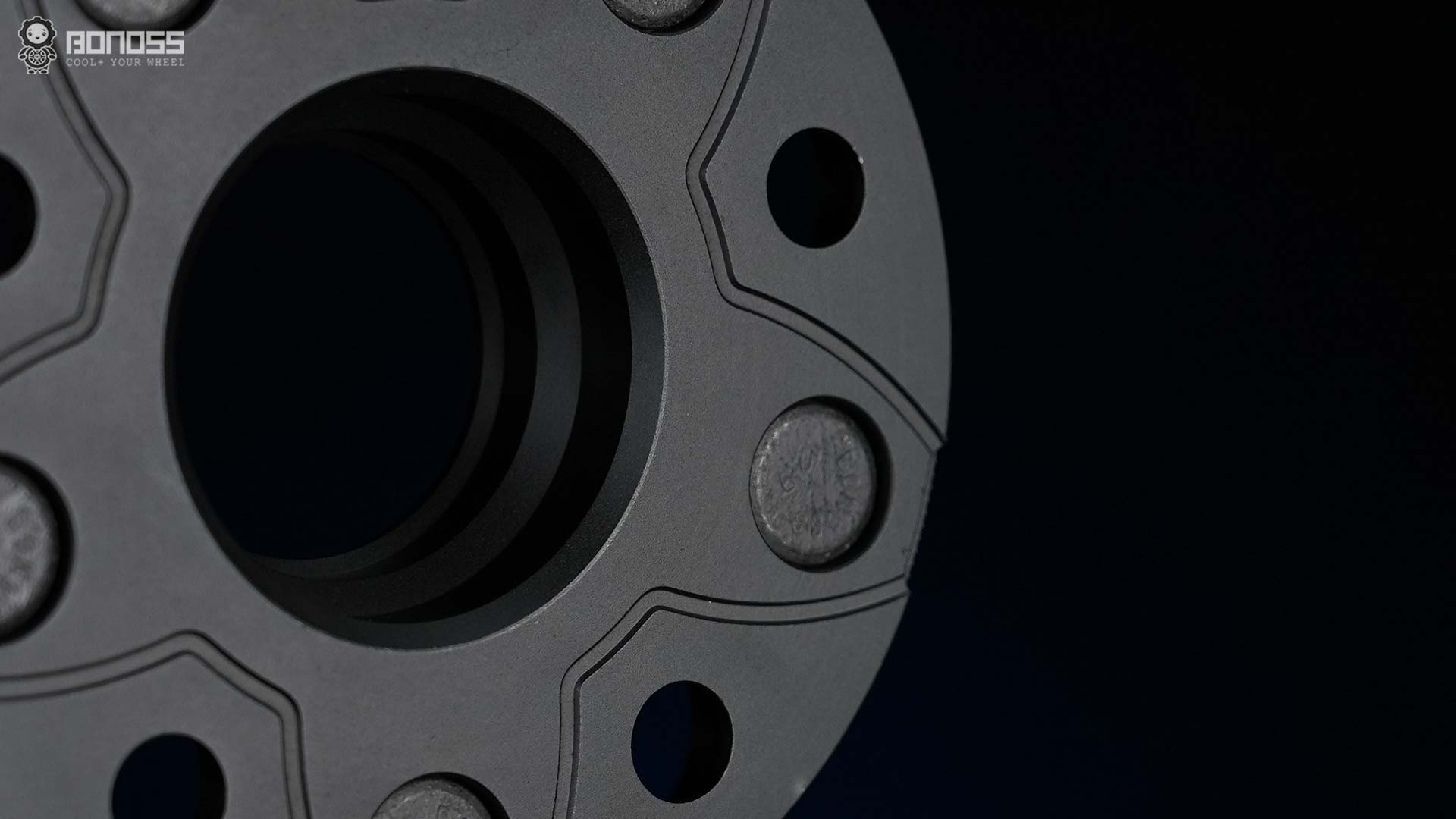

BONOSS forged active cooling C5 Corvette hub centric aluminum spacers are designed with better multi-stage hub-centric lips. The hub-centric metal ring is machined to be multi-layers, and the bevels fit the corresponding hub flange, which eliminates any kind of vibrations.
3. Full-cone Lug Seat for Improved Stability
What’s better, BONOSS forged active cooling Corvette hub centric wheel spacers come with full-cone lug seats. Full-cone seat design allows the studs and nuts to apply enough clamping force to lock the spacers, avoiding any potential loosening risks.
Frequently Asked FAQ
Q: Can you put spacers on spacers?
A: It is NOT recommended to put spacers on spacers. Using a single 1-inch wheel spacer instead of stacking 2 pcs of 1/2-inch spacers is the best way to ensure safety.
Q: How often should I torque hub centric spacers?
A: It is crucial to re-torque your good wheel spacers after the first 50 to 100 driving miles. Then, just re-torque them every routine tire maintenance.
Q: Should I put anti-seize on Corvette hub centric spacers?
A: It is optional to use anti-seize on wheel spacers. Good C5 Corvette hub centric wheel spacers (like BONOSS spacers) are well-treated in corrosion resistance. This means they won’t easily corrode or get stuck on your vehicle hub.
Final Summary: Elevate Your Wheel Style with BONOSS
With attention to innovative engineering and a relentless pursuit of quality manufacturing, BONOSS forged active cooling C5 Corvette hub centric wheel spacers surely give you the perfect wheel style and fitment along with confidence for years. Choose BONOSS and experience the difference—engineered for those who demand the best.
(Hi, I’m Kevin Brian, a 30-year mechanical engineer. For a better user experience, this article is original content uploaded by humans. It is not generated by Artificial Intelligence (AI) Models or tools.)
