The REFERENCE torque spec of Jeep Wrangler wheel spacers range from 83.3 ft-lbs (113 Nm) to 103.5 ft-lbs (140 Nm). Since some wheels or applications require more or less tightening torque, it’s best to consult a tire expert to find out the exact torque spec before operating. Using the manufacturer’s recommended torque helps guarantee that there isn’t either too much or too little pressure on any of the assemblies to which the wheel attaches.
Torque aluminum Jeep Wrangler wheel spacers and adapters to the torque specified in your vehicle owner’s manual. If you don’t know how much torque for installing spacers on wheels, you can use the following spacer torque chart:
- 1/2″-20 UNF lug nuts or studs: 83.3 ft-lbs (113 Nm)
- M14x1.5mm lug nuts or studs: 103.5 ft-lbs (140 Nm)

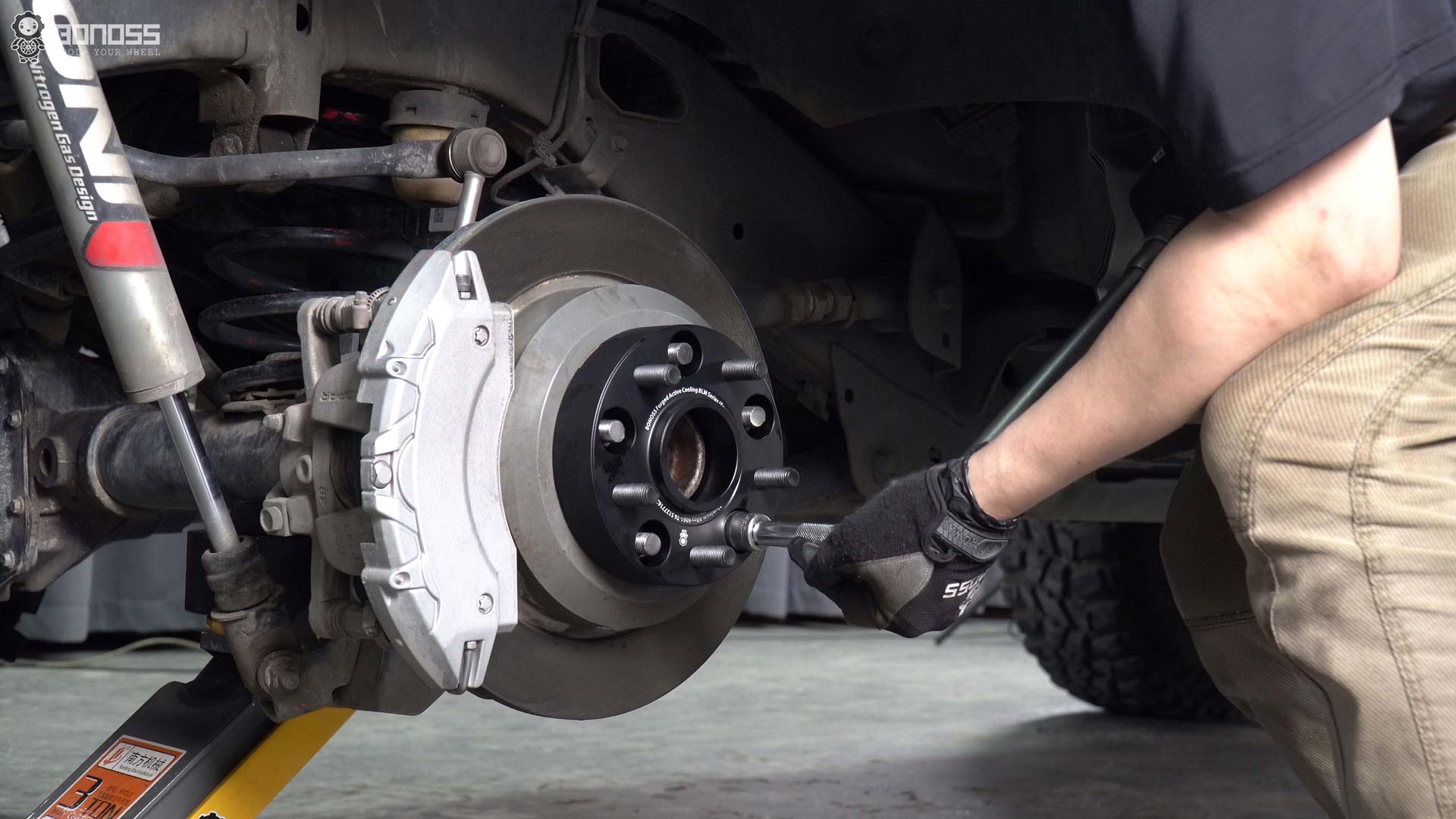

How to Correctly Torque Jeep Wrangler Wheel Spacers?
High-quality Jeep Wrangler wheel spacers are exactly safe but only if you install them properly. If you have basic mechanical proficiency, you can install wheel spacers yourself and save money. It is not difficult and some experienced people can complete it within an hour.
- Prepare Tools: You’ll need a jack, torque wrench, and socket set.
- Remove the Wheels: Remove the lug nuts and set the wheels aside.
- Clean the Hub Surface: Make sure the hub surface is clean and free of debris.
- Install Wheel Spacers: Place the wheel spacers onto the hub and tighten the spacer with the provided lug nuts.
- Remount the Wheels: Position the wheels back on the spacers and hand-tighten the lug nuts. Lower your Jeep: Use the torque wrench to tighten the lug nuts in a star pattern. This ensures that the Jeep Wrangler lug nuts are forced evenly.
- Test Drive: After installation, take your Jeep for a test drive to check for any vibrations or handling changes. Recheck the torque on the lug nuts after driving for 50-100 miles.
What Are the Best Jeep Wrangler Wheel Spacers?
Choosing a good brand of wheel spacers is crucial for safety and performance. Brand companies focus on quality and reputation. You can always trust reputable brands. For example, BONOSS is one of the best wheel spacer manufacturers and suppliers:
Top-quality Materials:

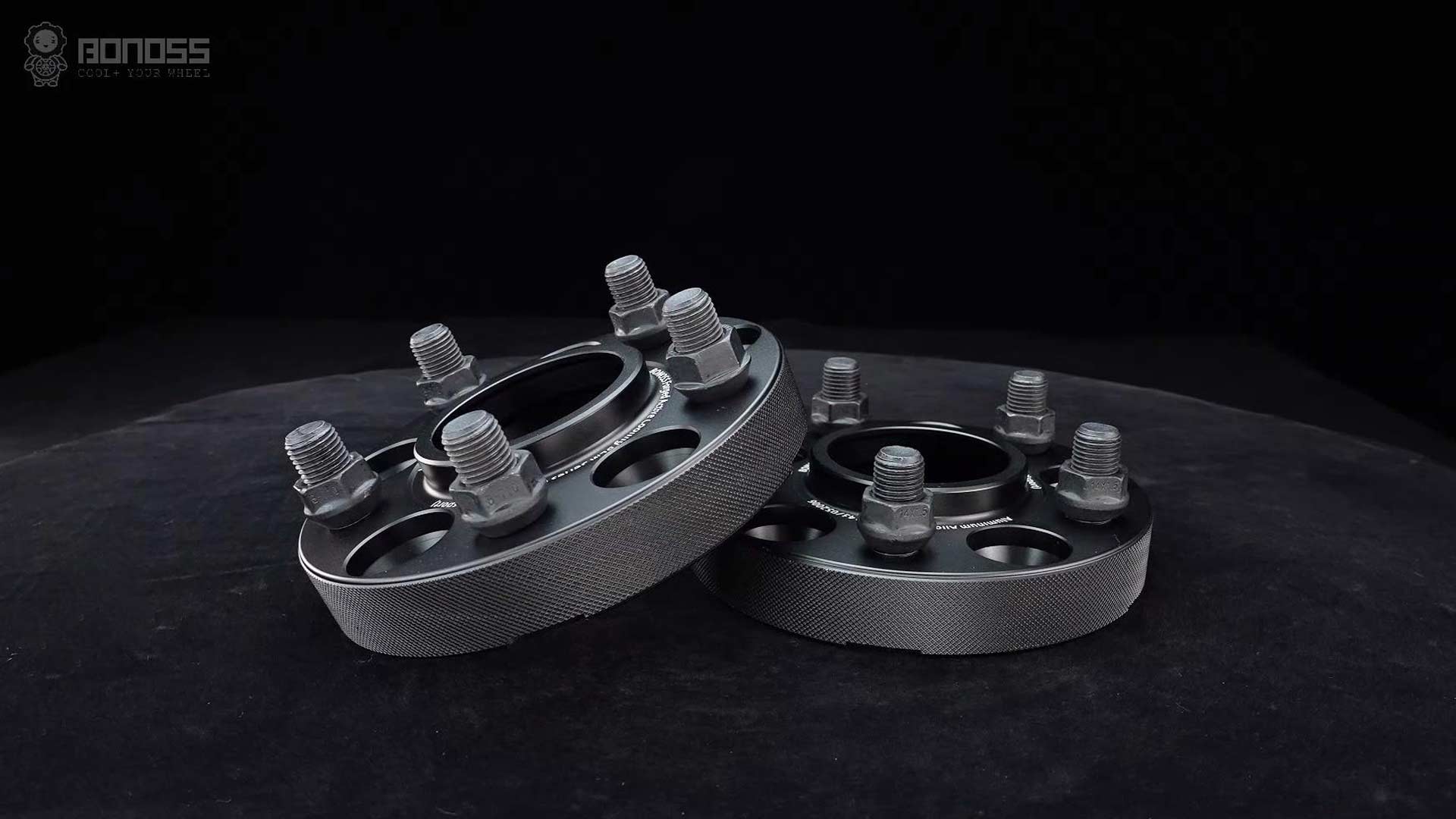

BONOSS forged active cooling Jeep Wrangler wheel spacers are made of forged 6061-T6 and 7075-T6 aluminum alloy. The tensile strength is up to 572 MPa and the yield strength is up to 503 MPa (AL7075-T6). From lightweight, and durable to high-strength, these BONOSS forged active cooling wheel spacers are an excellent choice for upgrading your wheel style.
Precise Hub-centric Design:
Thanks to the multi-stage hub-centric design, BONOSS forged active cooling Jeep Wrangler wheel spacers can perfectly fit the specific wheel hub, eliminating any possible gaps. In this way, the wheel is centered by the hub connection and the lugs can hold it flush against the mounting plate. As long as you torque each lug nut properly, there won’t be wheel vibration issues.
Additional Functions:
Based on traditional rim spacers, BONOSS forged active cooling wheel spacers come with a unique active cooling function. They are designed with heat dissipation grooves to allow the external cold air to flow continuously inside the wheel spacer when it rotates. The air takes away the heat, so these BONOSS wheel spacers actively dissipate heat for the braking system. This is good for your performance brakes.
10-year Warranty:
No matter the size, material or finish you’re looking for, BONOSS has the best Jeep Wrangler spacers you want. What’s better, BONOSS forged active cooling Jeep spacers provide a 10-year warranty. Mostly, the longer the warranty, the better. Whether you’re getting ready for an enjoyable adventure or a daily commute, these BONOSS forged active cooling Jeep Wrangler wheel spacers will be a perfect option.
