BMW 5×112 to 5×120 wheel adapters are available on BONOSS. As a professional manufacturer of wheel spacers and wheel adapters, BONOSS can provide custom data conversion services for different bolt patterns according to customers’ requirements. Whether the classic BMW E46 or the 2020 BMW X6 M, BONOSS can customize the wheel adapters to fit different bolt patterns of aftermarket wheels according to the database of high-performance wheel adapters.
We have abundant production experience. We have customized BMW 5×112 to 5×120 wheel adapters, 5×112 to 5×114.3 wheel adapters, 4×100 to 5×114.3 wheel adapters, etc. The customization service is not only limited to converting PCD; CB data can also be changed with the help of wheel adapters. With the installation of BMW 5×112 to 5×120 wheel adapters, customers can choose from top-line aftermarket wheels, including BBS, RAYS, HRE, etc. These wheels will give your vehicle a more personalized element.
How to Make BMW 5×112 to 5×120 Wheel Adapters?
PCD refers to the number of bolt holes and the hypothetical circle diameter formed by connecting the bolt holes, also called the pitch circle diameter. There is a permanent PCD on the vehicle’s brake rotor and a permanent PCD on the stock wheels to fit the brake rotor, but there are different PCDs for aftermarket wheels, and it is often difficult to find the right PCD for the desired style. The BMW 5×112 to 5×120 wheel adapters can help customers install these different aftermarket wheel data.

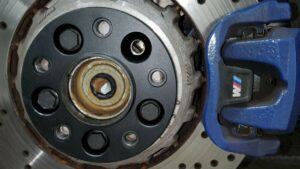

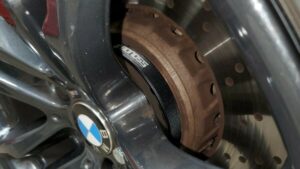

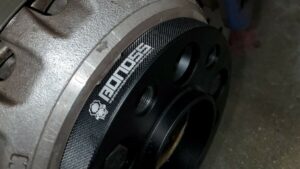

BMW 5×112 to 5×120 wheel adapters mainly refer to vehicles with a PCD of 5×112 that require the installation of PCD 5×120 aftermarket wheels. BMW 5×112 to 5×120 wheel adapters are placed between the wheels and the brake rotor, allowing both threads to be installed in the bolt holes of the BMW 5×112 to 5×120 wheel adapters to convert data. With hub-centric BMW 5×112 to 5×120 wheel adapters, it is safe that the vehicle weight is still evenly distributed on each wheel center and tire.
First, the BONOSS factory will cut the disc body in an aluminum billet large enough to machine a 5×112 bolt pattern. These bolt holes are used for BMW 5×112 to 5×120 wheel adapters fastened to the brake rotor. Meanwhile, according to the thread data, the factory will match the proper lug bolts. Then, according to the customers’ need for aftermarket wheels, PCD to machine the second set of data, and then CNC will machine the lug bolt holes between the bolt holes of the first set with an accuracy of 0.02mm, and they will be used for the fastening of the aftermarket wheels.
Are BMW 5×112 to 5×120 Wheel Adapters Safe?
BONOSS will machine the CBs for the brake rotor and wheel hub centric on a custom PCD basis. BMW 5×112 to 5×120 wheel adapters with a central projection will be used as fasteners to connect the two components. The multi-stage hub centric will take into account the tilt angle and curvature of the component contact surfaces, and the inner and outer diameters will be machined with the help of a CNC-controlled machine.
Hub-centric BMW 5×112 to 5×120 wheel adapters are safe. Wheel spacers and wheel adapters are similar in structure. The function of hub centric is to keep the wheels in a concentric position with the brake rotor, using hub-centric fixation to avoid lug bolts bearing body weight. The hub-centric will eliminates the shaking caused by the wrong position of wheel fixing under high speed of the vehicle and is safer.
